KINO-DQM871 Mini-ITX SBC
Page 30
3.2.12 LVDS Backlight Connector
CN Label: INV1
CN Type:
5-pin wafer
CN Location:
See
Figure 3-13
CN Pinouts:
See
Table 3-14
The backlight inverter connectors provide power to LCD panels.

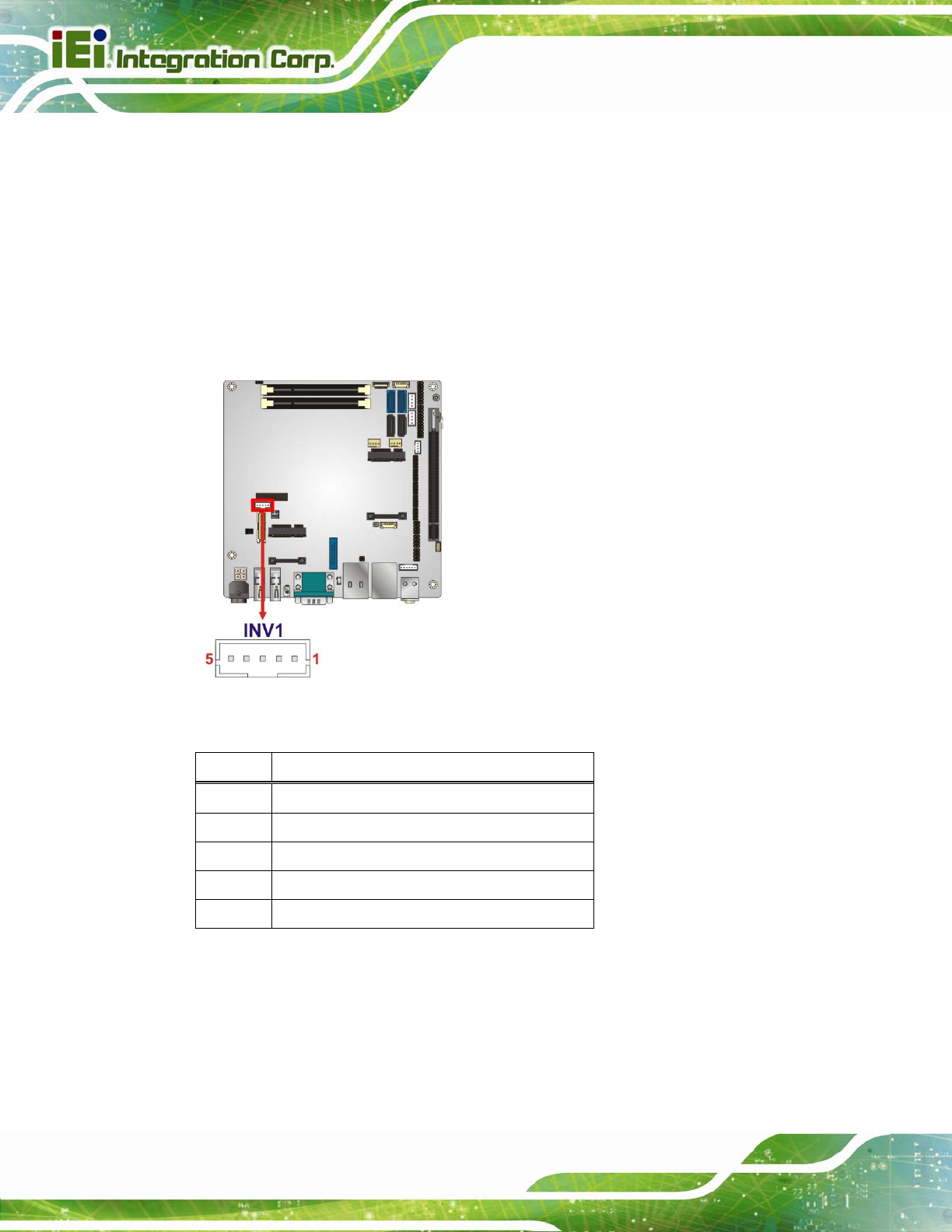

Figure 3-13: LVDS Backlight Inverter Connector
Pin Description
1 BRIGHTNESS
2 GROUND
3 +12VS_LCD_BKL
4 GROUND
5 BACKLIGHT ENABLE
Table 3-14: Backlight Inverter Connector Pinouts
3.2.13 PCIe Mini Card Slot (Full-size)
CN Label: M-SATA1
CN Type:
Full-size PCIe Mini card slot
