KINO-DQM871 Mini-ITX SBC
Page 28

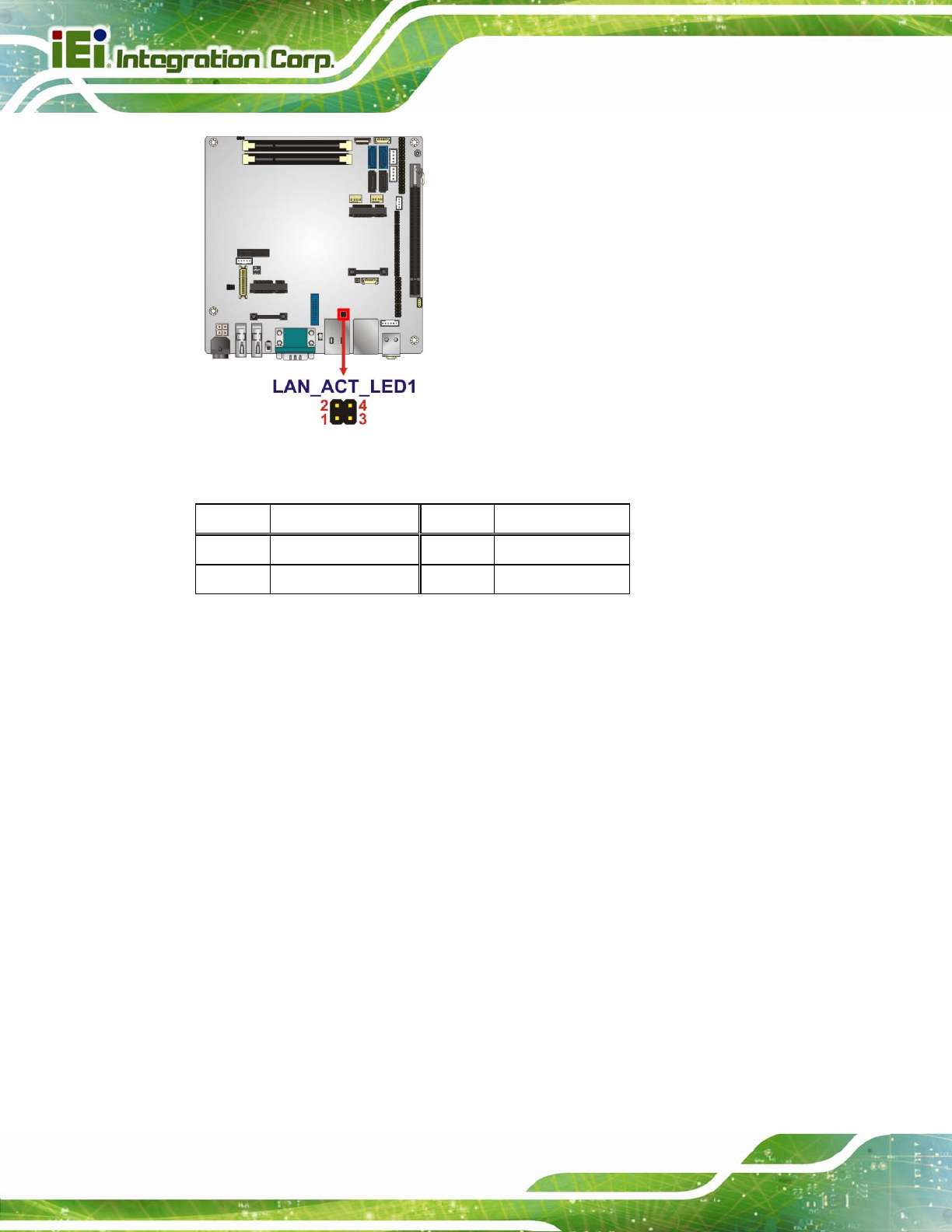

Figure 3-11: LAN Active LED Connector Location
Pin Description Pin Description
1 LAN1_LINK_ACT- 2 V_3P3_LAN
3 LAN2_LINK_ACT- 4 +3.3A
Table 3-12: LAN Active LED Connector Pinouts
3.2.11 LVDS Connector
CN Label: LVDS1
CN Type:
30-pin crimp
CN Location:
See
Figure 3-12
CN Pinouts:
See
Table 3-13
The LVDS connector is for an LCD panel connected to the board.
