KINO-DQM871 Mini-ITX SBC
Page 27
The keyboard/mouse connector connects to a PS/2 Y-cable that can be connected to a
PS/2 keyboard and mouse.

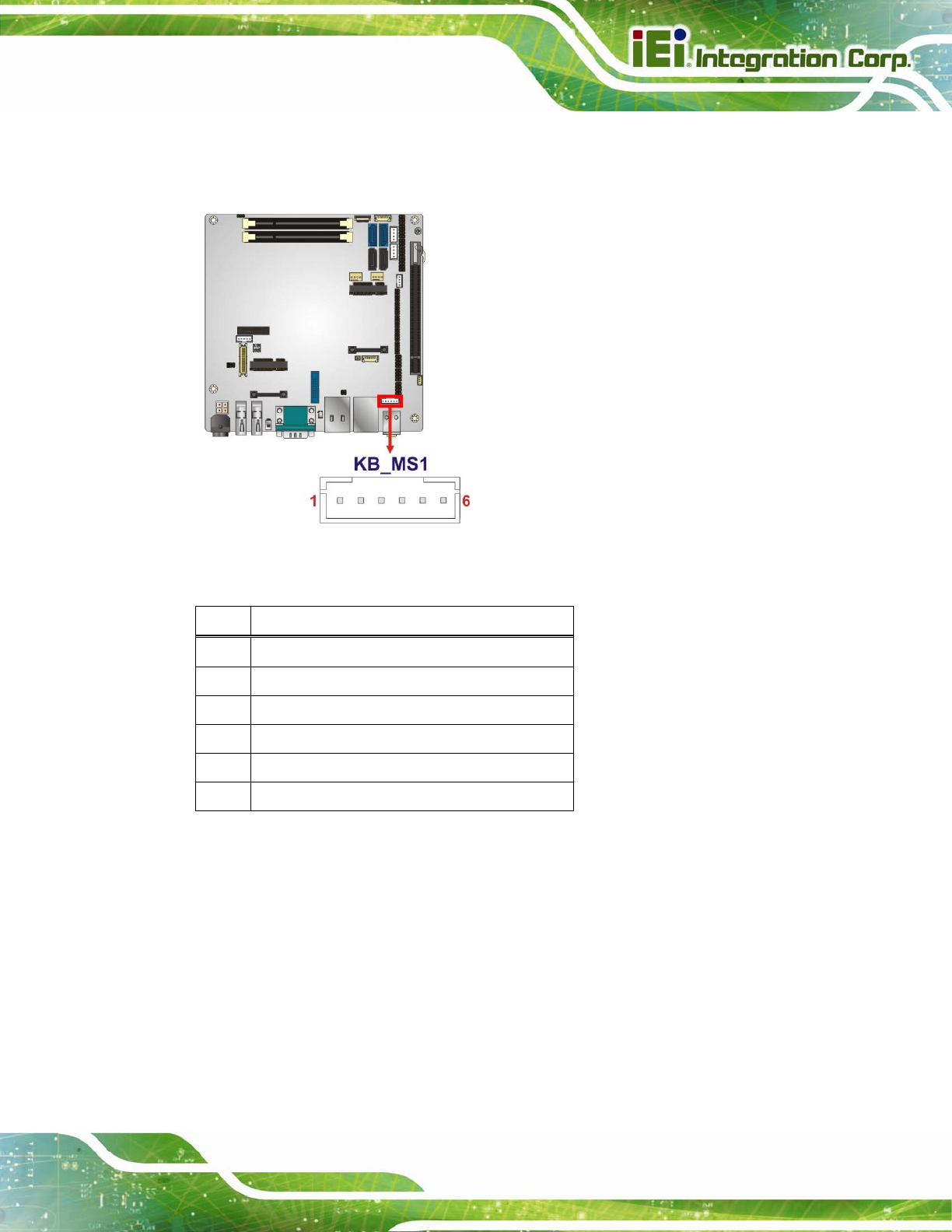

Figure 3-10: Keyboard/Mouse Connector Location
Pin Description
1 VCC5_KBMS
2 Mouse Data
3 Mouse Clock
4 Keyboard Data
5 Keyboard Clock
6 GND
Table 3-11: Keyboard/Mouse Connector Pinouts
3.2.10 LAN Active LED Connector
CN Label: LAN_ACT_LED1
CN Type:
4-pin header
CN Location:
See
Figure 3-11
CN Pinouts:
See
Table 3-12
The connector is for active LED connection of the external LAN ports.
