KINO-DQM871 Mini-ITX SBC
Page 26
The front panel connector connects to the indicator LEDs and buttons on the computer's
front panel.

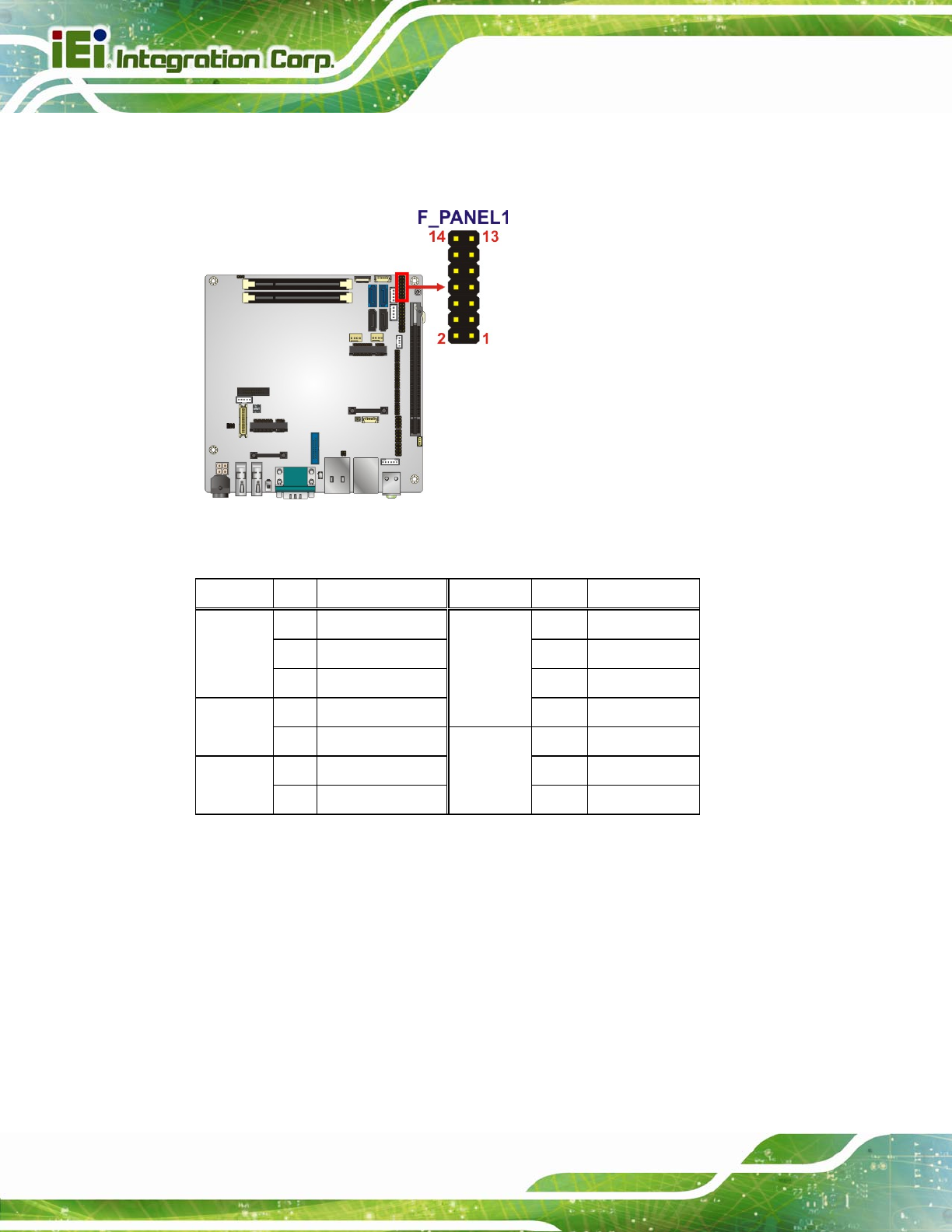

Figure 3-9: Front Panel Connector Location
Pin Description Pin Description
1 PWR_LED+ 2 BEEP_PWR
3 NC 4 NC
Power
LED
5 PWR_LED- 6 NC
7 PWRBTN_SW#_C
Buzzer
8 PC_BEEP
Power
Button
9 GND 10 NC
11 HDD_LED+ 12 EXTRST- HDD
LED
13 HDD_LED-
Reset
14 GND
Table 3-10: Front Panel Connector Pinouts
3.2.9 Keyboard/Mouse Connector
CN Label: KB_MS1
CN Type:
6-pin wafer
CN Location:
See
Figure 3-10
CN Pinouts:
See
Table 3-11
