KINO-DQM871 Mini-ITX SBC
Page 25
CN Location:
See
Figure 3-8
CN Pinouts:
See
Table 3-9
The fan connector attaches to a system cooling fan.

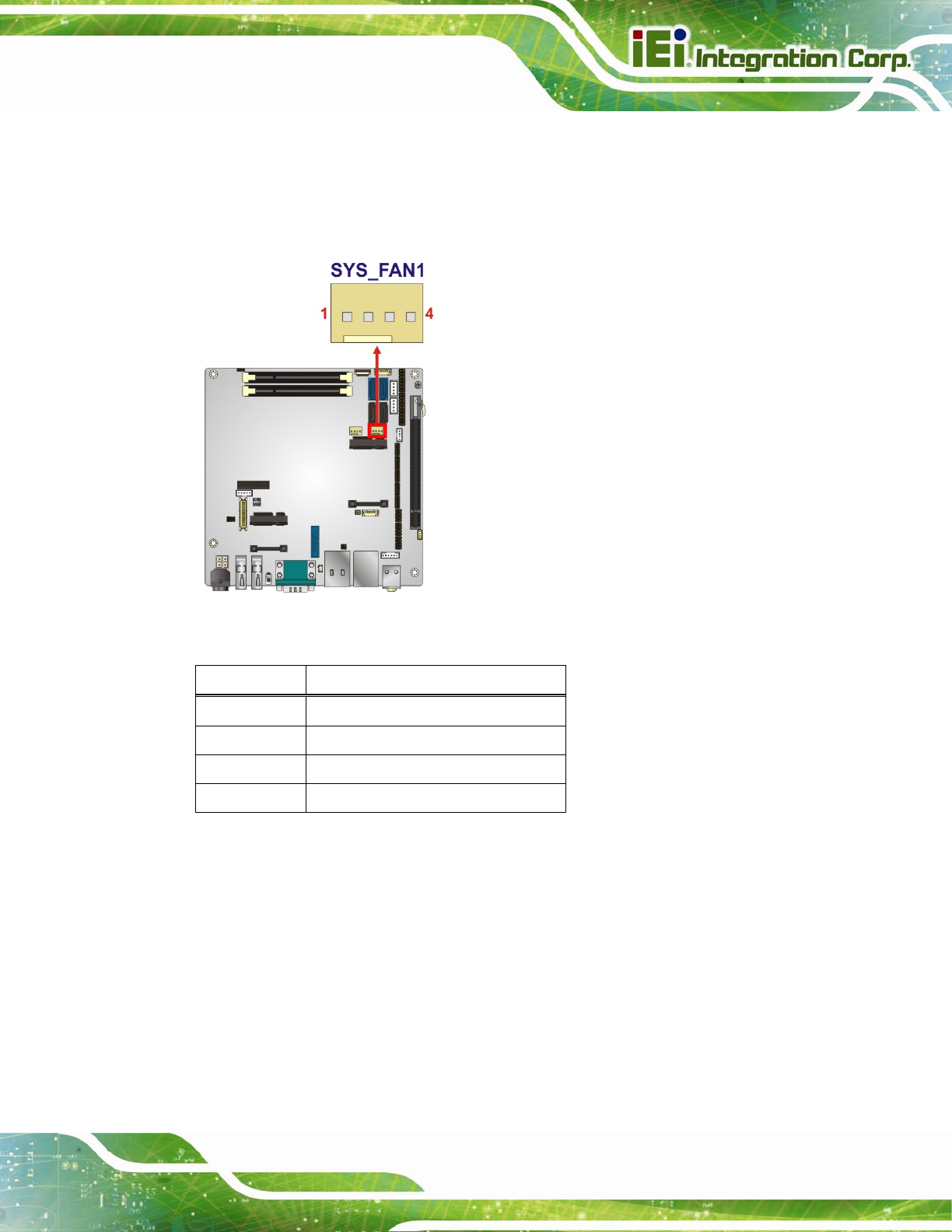

Figure 3-8: System Fan Connector Location
Pin Description
1
GND
2
+V12S
3
Rotation Signal
4
PWM Control Signal
Table 3-9: System Fan Connector Pinouts
3.2.8 Front Panel Connector
CN Label: F_PANEL1
CN Type:
14-pin header
CN Location:
See
Figure 3-9
CN Pinouts:
See
Table 3-10
