KINO-DQM871 Mini-ITX SBC
Page 24
3.2.6 Fan Connector (CPU)
CN Label: CPU_FAN1
CN Type:
4-pin wafer
CN Location:
See
Figure 3-7
CN Pinouts:
See
Table 3-8
The fan connector attaches to a CPU cooling fan.

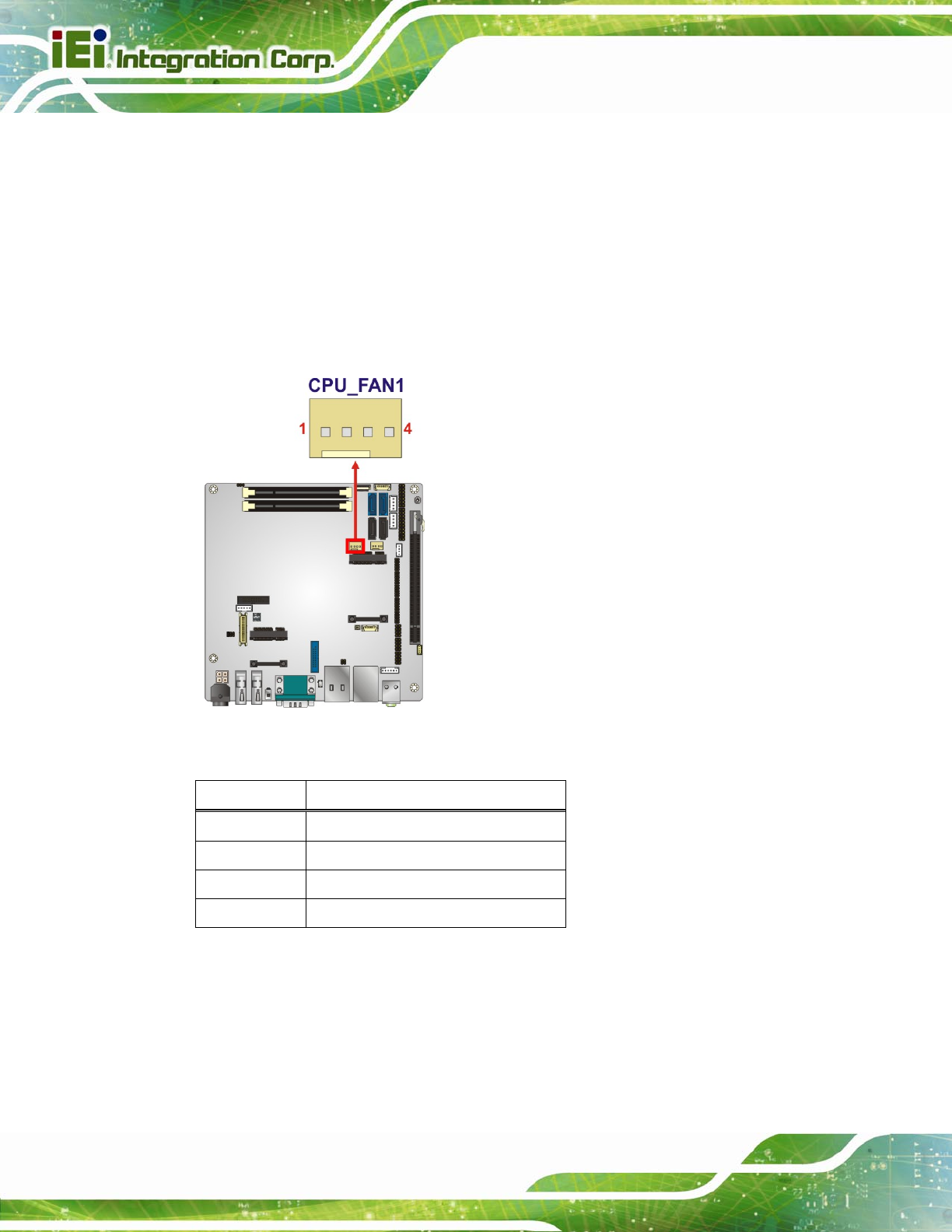

Figure 3-7: CPU Fan Connector Location
Pin Description
1
GND
2
+V12S
3
Rotation Signal
4
PWM Control Signal
Table 3-8: CPU Fan Connector Pinouts
3.2.7 Fan Connector (System)
CN Label: SYS_FAN1
CN Type:
4-pin wafer
