KINO-DQM871 Mini-ITX SBC
Page 23
3.2.5 EC Debug Port
CN Label: LPT_DB1
CN Type:
20-pin header
CN Location:
See
Figure 3-6
CN Pinouts:
See
Table 3-7
The connector is for EC debug only.

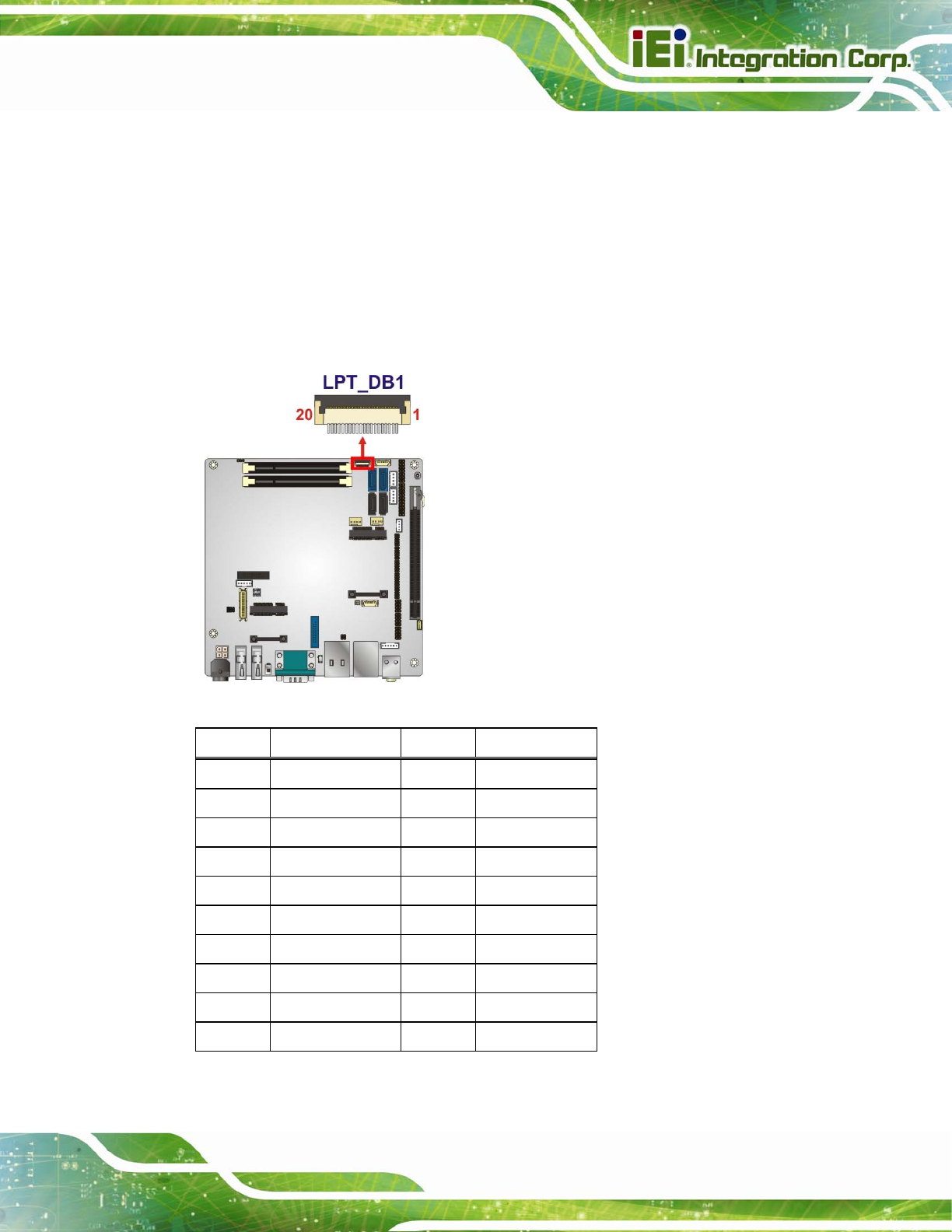

Figure 3-6: BIOS Debug Port Location
Pin Description Pin Description
1 KSI0 2 KSO0
3 KSO1 4 KSO2
5 KSO3 6 KSO4
7 KSO5 8 KSO6
9 KSO7 10 KSO8
11 KSO9 12 KSO10
13 KSO12 14 KSI1
15 KSO11 16 KSI2
17 KSI3 18 GND
19 GND 20 GND
Table 3-7: EC Debug Port Pinouts
