KINO-DQM871 Mini-ITX SBC
Page 22
3.2.4 DisplayPort Connector
CN Label: DP1
CN Type:
20-pin box header
CN Location:
See
Figure 3-5
CN Pinouts:
See
Table 3-6
Connects to a monitor that accepts DisplayPort input.

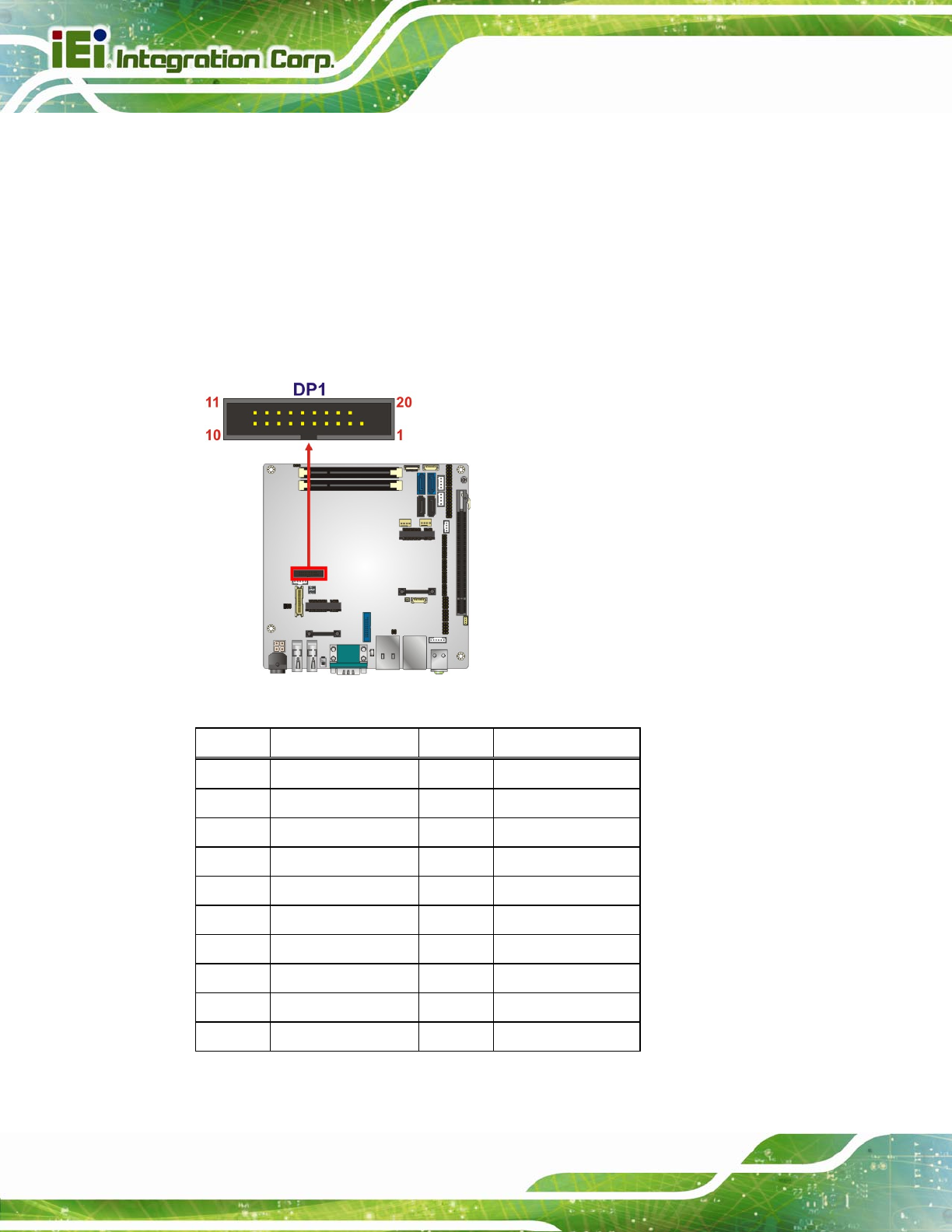

Figure 3-5: DisplayPort Connector Location
Pin Description Pin Description
1 +5V 11 AUX_N2
2 DPB_OB_LANE1_N 12 AUX_P2
3 DPB_OB_LANE1_P 13 GND
4 GND 14 DPB_OB_LANE2_P
5 DPB_OB_LANE3_N 15 DPB_OB_LANE2_N
6 DPB_OB_LANE3_P 16 GND
7 GND 17 DPB_OB_LANE0_P
8 DP2_CFG1 18 DPB_OB_LANE0_N
9 GND 19 +3.3V
10 TMDS_B_HPD#
Table 3-6: DisplayPort Connector Pinouts
