3.2 Internal Peripheral Connectors
Internal peripheral connectors are found on the motherboard and are only accessible
when the motherboard is outside of the chassis. This section has complete descriptions of
all the internal, peripheral connectors on the KINO-DQM871.
3.2.1 ATX Power Signal Connector
CN Label: PS_ON1
CN Type:
3-pin header
CN Location:
See
Figure 3-2
CN Pinouts:
See
Table 3-3
This connector provides power-on signal for ATX power mode. Users can use the
power-on signal to work with devices that need to receive the PS_ON signal in ATX mode.

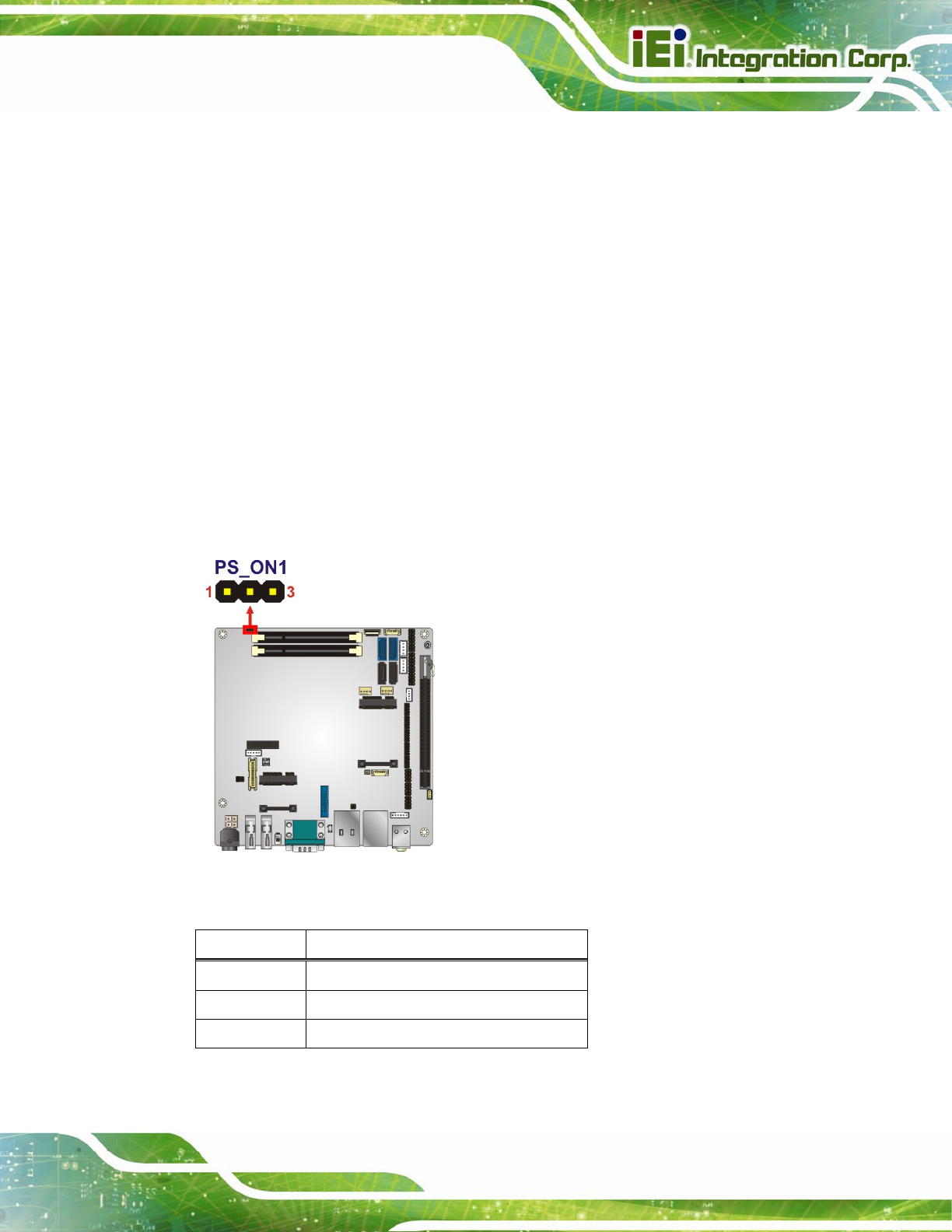

Figure 3-2: ATX Power Signal Connector Location
Pin Description
1
5VSB
2
EC_PSON#
3
GND
Table 3-3: ATX Power Signal Connector Pinouts
