recovery partition. After completing the system configuration, press any key to
reboot the system. Eject the recovery CD.

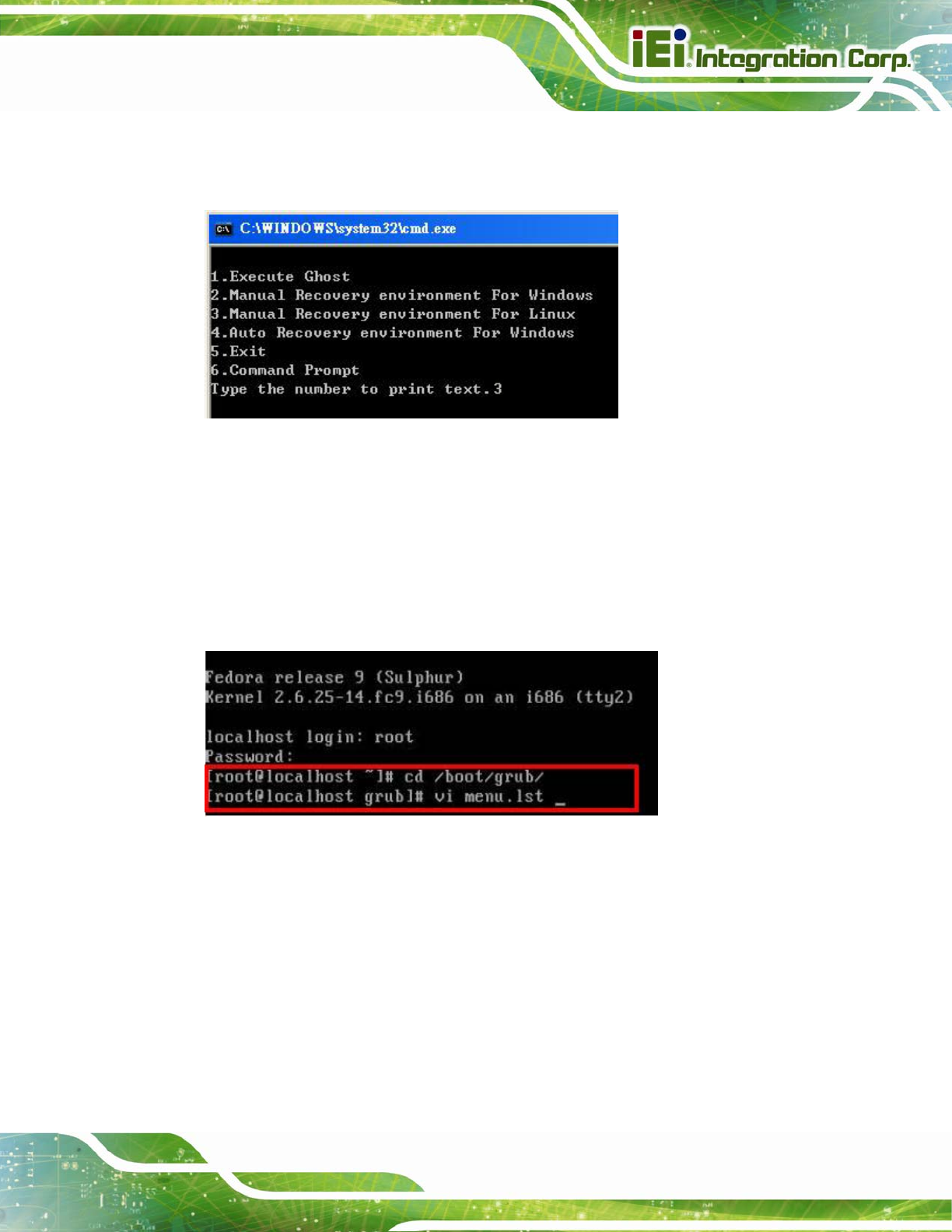

Figure B-32: Manual Recovery Environment for Linux
Step 5: Access the recovery tool main menu by modifying the “menu.lst”. To first
access the recovery tool main menu, the menu.lst must be modified. In Linux,
enter Administrator (root). When prompt appears, type:
cd /boot/grub
vi menu.lst
Figure B-33: Access menu.lst in Linux (Text Mode)
Step 6: Modify the menu.lst as shown below.
