KINO-DQM871 Mini-ITX SBC
Page 140

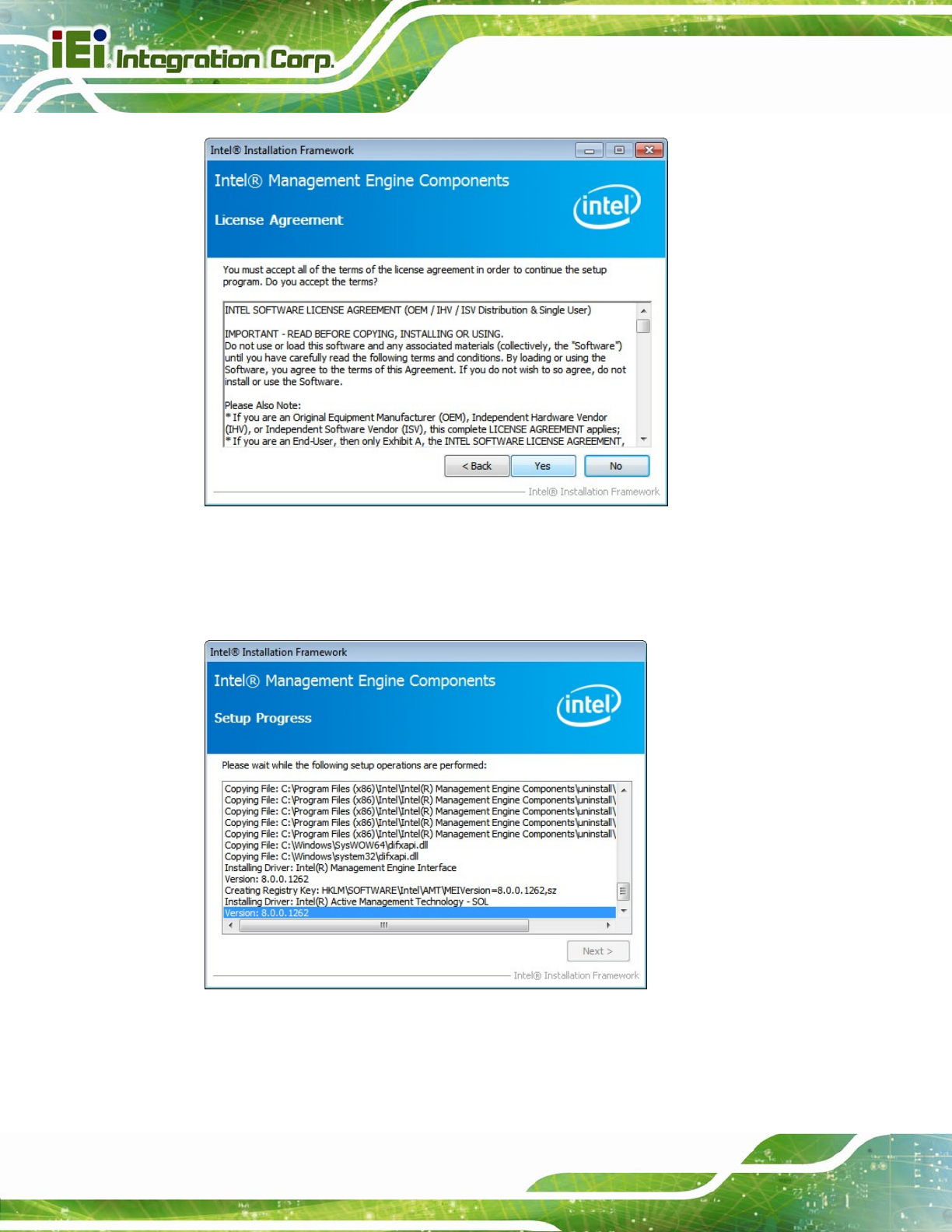

Figure 6-29: Intel® ME Driver License Agreement
Step 9: Setup Operations are performed as shown in
Figure 6-30.
Step 10: Once the Setup Operations are complete, click Next to continue.
Figure 6-30: Intel® ME Driver Setup Operations
Step 11: The Finish screen in
Figure 6-31 appears.
