KINO-DQM871 Mini-ITX SBC
Page 123
Step 2: Click “1-Chipset”.
Step 3: Locate the setup file and double click on it.
Step 4: The Welcome Screen in
Figure 6-3 appears. Click Next to continue.

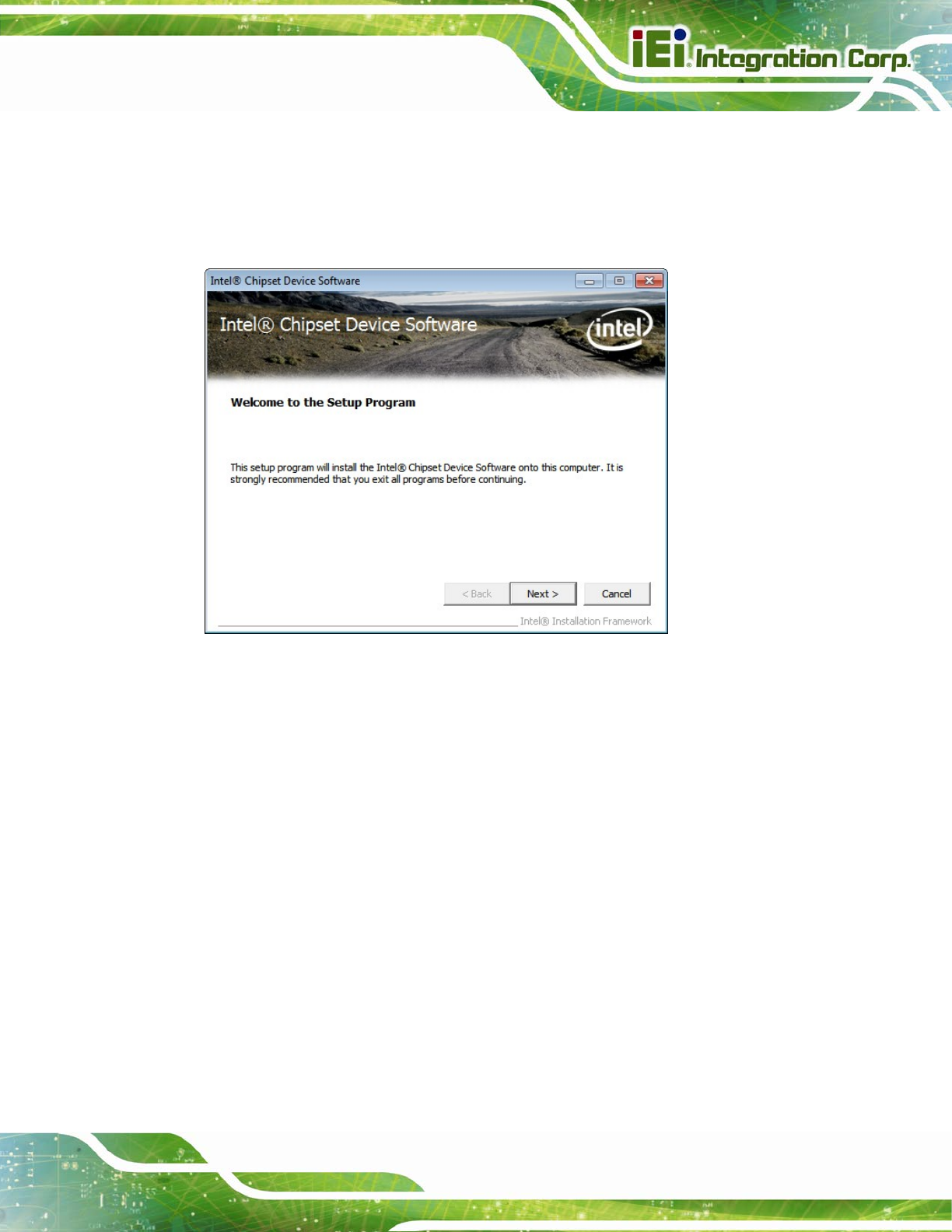

Figure 6-3: Chipset Driver Welcome Screen
Step 5: The license agreement in
Figure 6-4 appears.
Step 6: Read the License Agreement.
Step 7: Click Yes to continue.
