KINO-9652 Mini-ITX SBC
Page 77
Step 5: Connect the fan cable. Connect the cooling kit fan cable to the fan connector
on the motherboard. Carefully route the cable and avoid heat generating chips
and fan blades. See
Figure 5-5. Step 0:

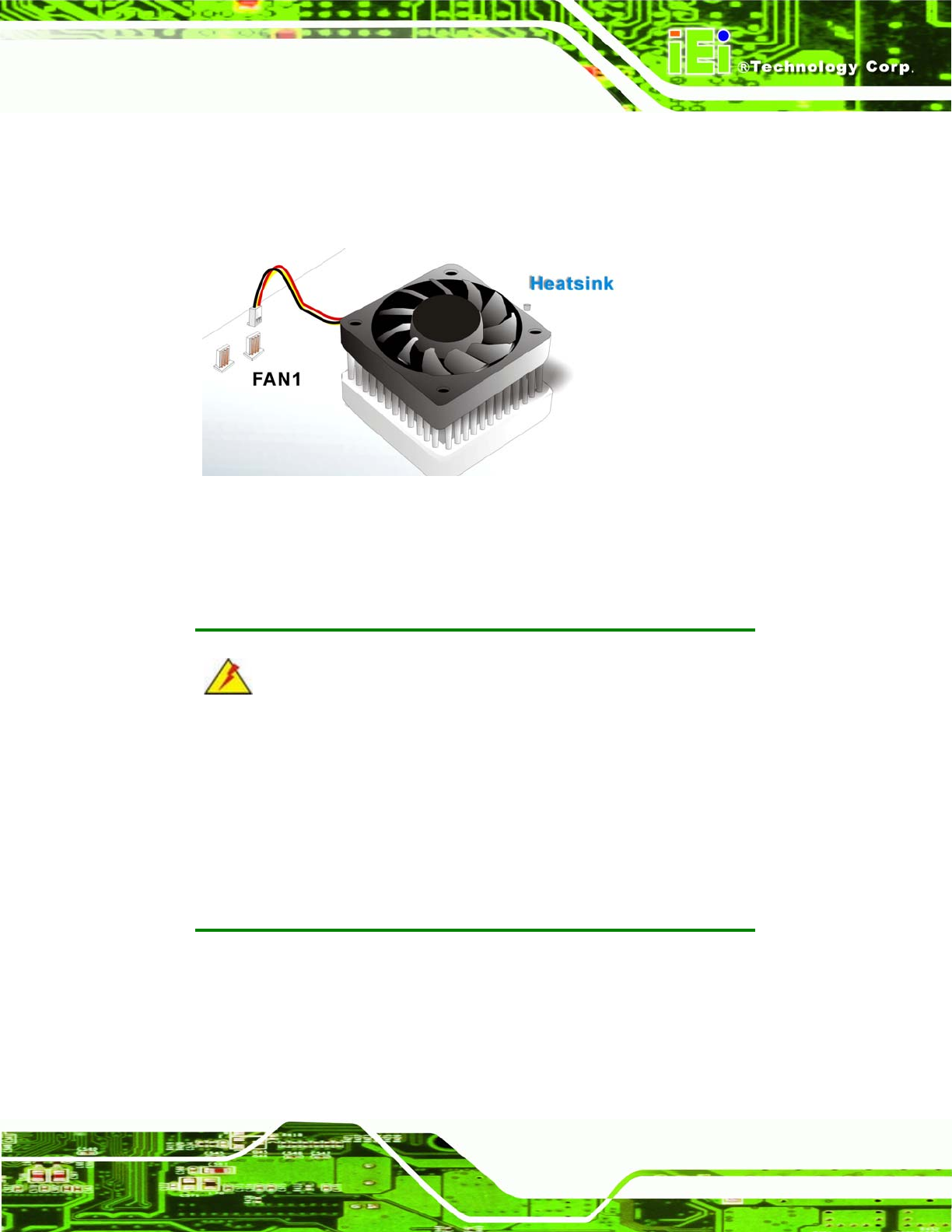

Figure 5-5: Connect the cooling fan cable
5.3.3 DIMM Installation
WARNING:
Only DDR2 memory module can be installed on the KINO-9652. Do not
install DDR memory modules. If a DDR memory module is installed on
the KINO-9652, the KINO-9652 may be irreparably damaged. Please
make sure the purchased DIMM complies with the memory
specifications of the KINO-9652. DIMM specifications compliant with
the KINO-9652 are listed in Chapter 2.
