KINO-9652 Mini-ITX SBC
Page 67
5 L_KCLK 11 L_MCLK
6 NC 12 NC
Table 4-22: PS/2 Connector Pinouts
4.3.5 Serial Port Connectors
CN Label: VGA1_COM1 and COM_C1
CN Type:
DB-9
CN Location: See
Figure 4-19
CN Pinouts: See
Table 4-23
The serial ports can be connected to a serial communications device directly.

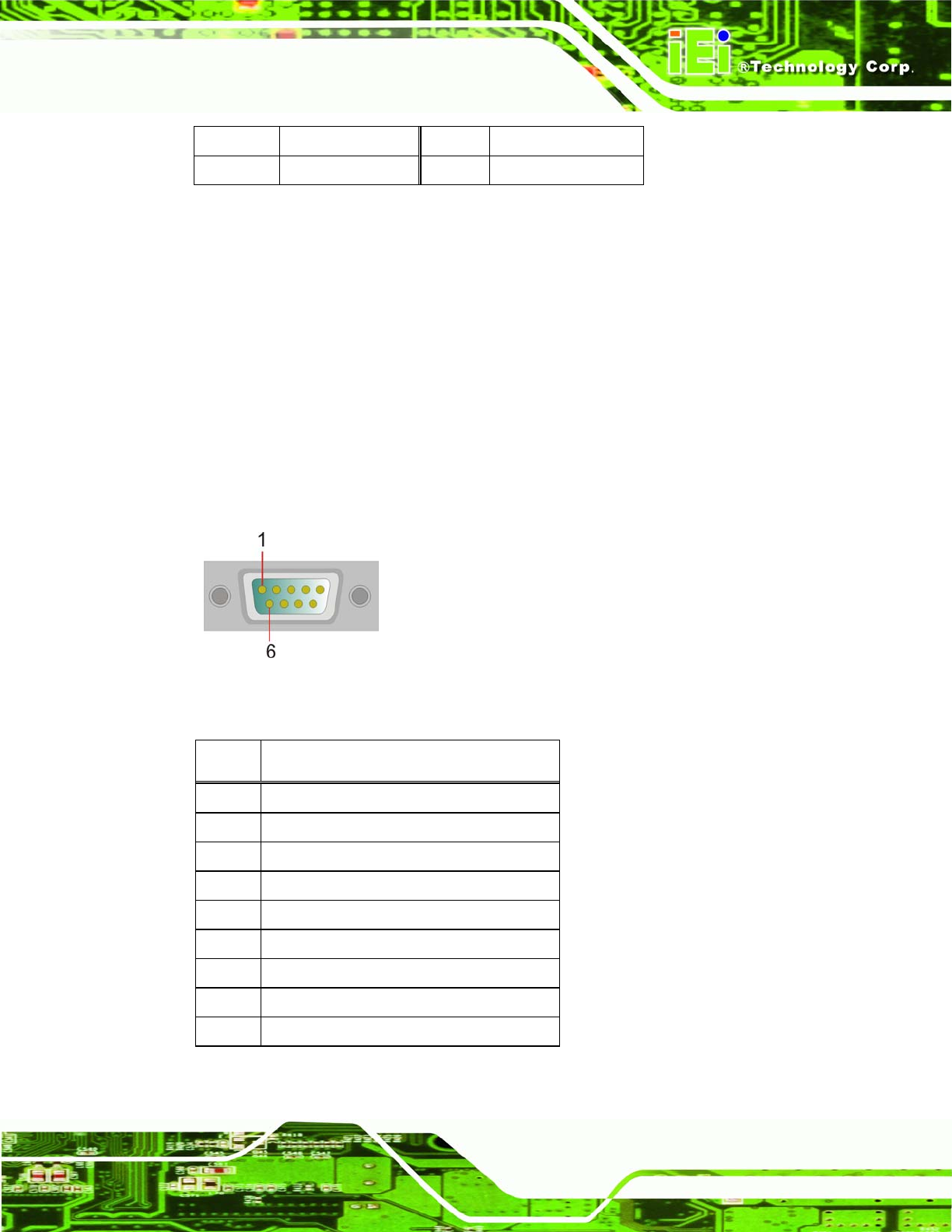

Figure 4-24: External Serial Port Connector
PIN Description
1 DATA CARRIER DETECT (DCD)
2 RECEIVE DATA (RXD)
3 TRANSMIT DATA (TXD)
4 DATA TERMINAL READY (DTR)
5 GROUND (GND)
6 DATA SET READY (DSR)
7 REQUEST TO SEND (RTS)
8 CLEAR TO SEND (CTS)
9 RING INDICATOR (RI)
Table 4-23: External Serial Port Pinouts
