KINO-9652 Mini-ITX SBC
Page 66
SPEED LED ACT/LINK LED
STATUS DESCRIPTION STATUS DESCRIPTION
OFF 10Mbps connection OFF No link
ORANGE 100Mbps connection YELLOW Linked
GREEN 1Gbps connection BLINKING Data Activity
Table 4-21: RJ-45 Ethernet Connector LEDs
4.3.4 Keyboard/Mouse Connector
CN Label: KB_MS1
CN Type:
PS/2 connector
CN Location: See
Figure 4-19
CN Pinouts: See
Table 4-22
The KINO-9652 keyboard and mouse connectors are standard PS/2 connectors.

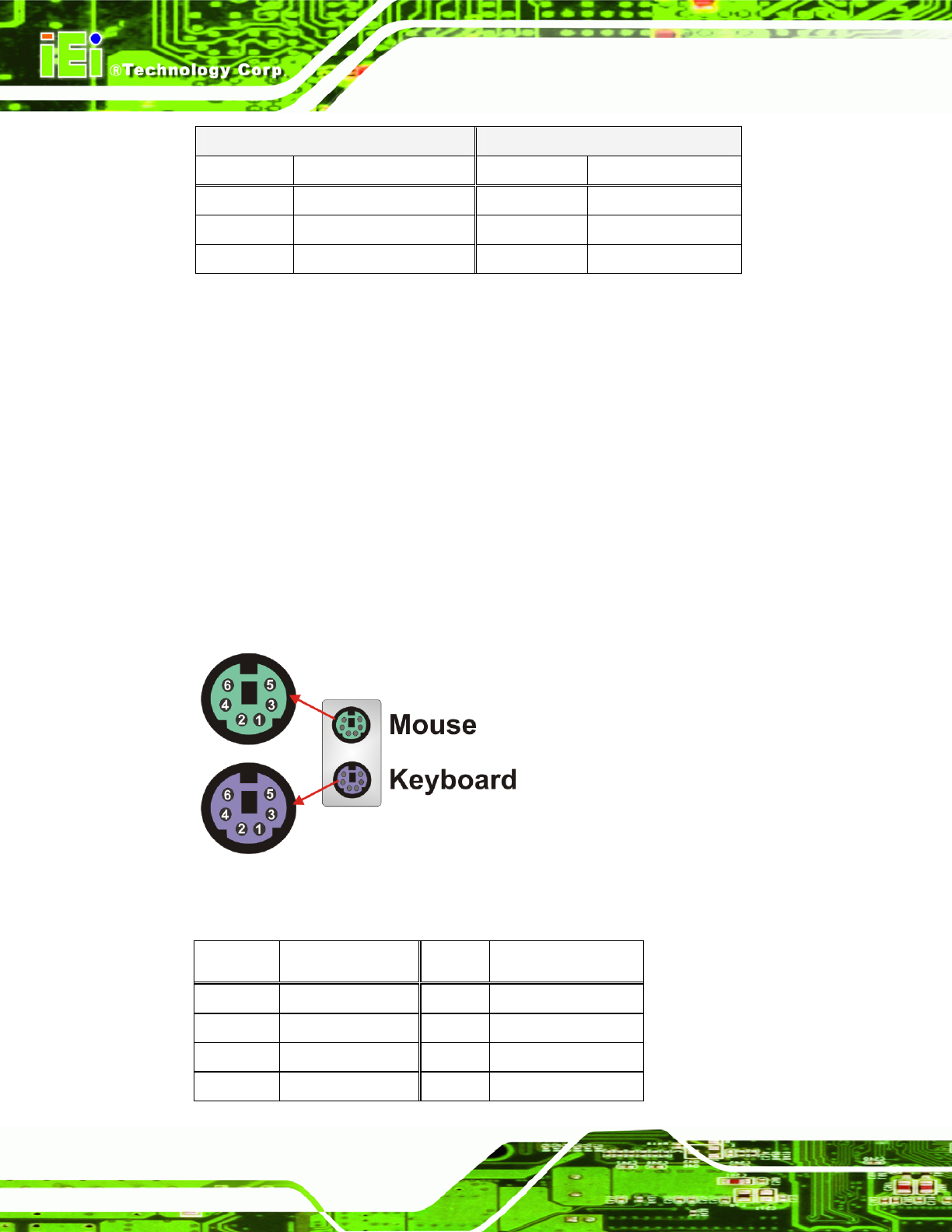

Figure 4-23: PS/2 Pinouts
PIN DESCRIPTION PIN DESCRIPTION
1 L_KDAT 7 L_MDAT
2 NC 8 NC
3 GND 9 GND
4 5V 10 5V
