4.3.3 Ethernet Connectors
CN Label: LAN1_USB1 and LAN2_USB2
CN Type:
RJ-45
CN Location: See
Figure 4-19
CN Pinouts: See
Table 4-20
The KINO-9652 is equipped with two built-in GbE Ethernet controllers. The controllers can
connect to the LAN through two RJ-45 LAN connectors. There are two LEDs on the
connector indicating the status of LAN. The pin assignments are listed in the following
table:
PIN DESCRIPTION PIN DESCRIPTION
1 CT1 6 MDX2+
2 MDX0+ 7 MDX2-
3 MDX0- 8 MDX3+
4 MDX1+ 9 MDX3-
5 MDX1- 10 GND
Table 4-20: LAN1 and LAN2 Pinouts

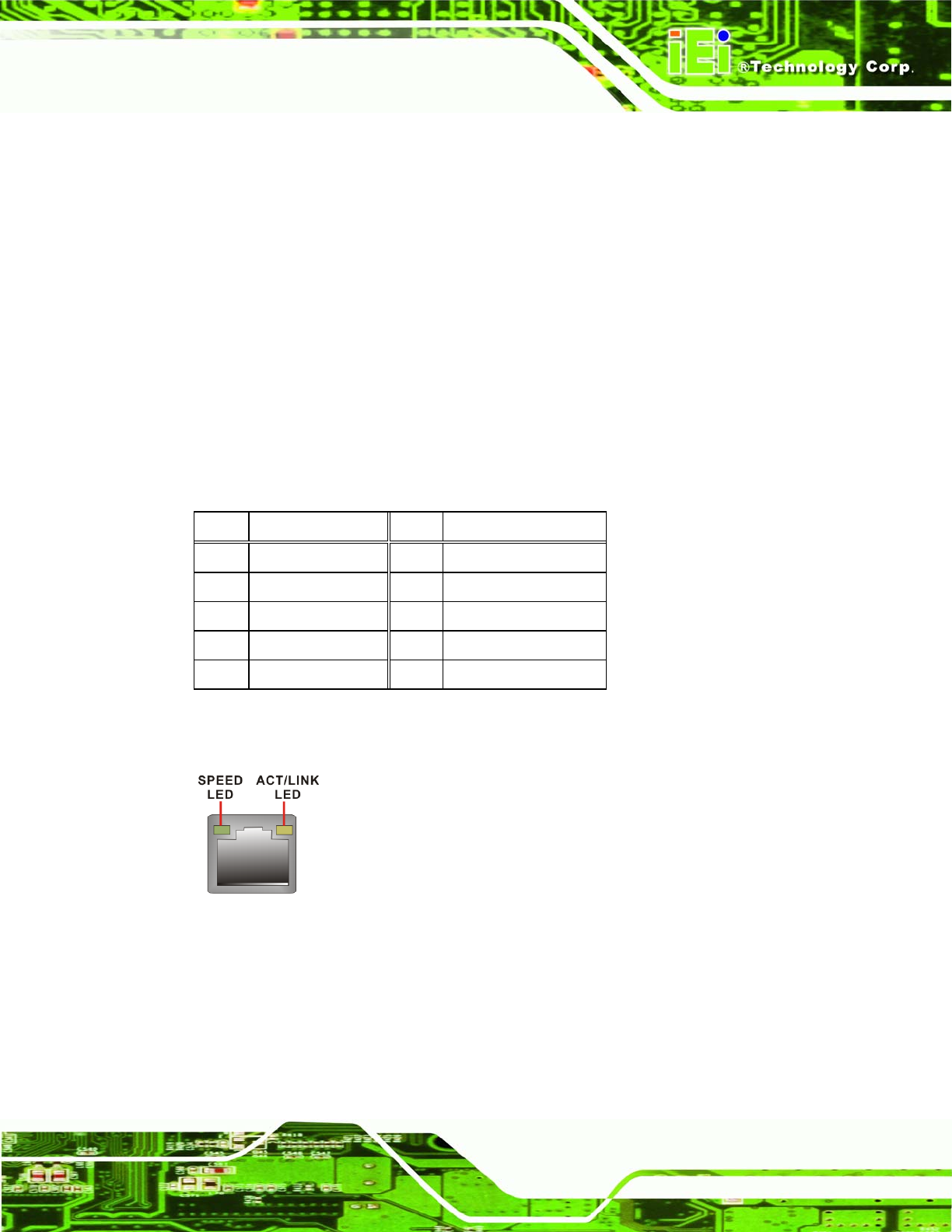

Figure 4-22: RJ-45 Ethernet Connector
The RJ-45 Ethernet connector has two status LEDs, one green and one yellow. The green
LED indicates activity on the port and the yellow LED indicates the port is linked. See
Table 4-21.
