KINO-9652 Mini-ITX SBC
Page 63

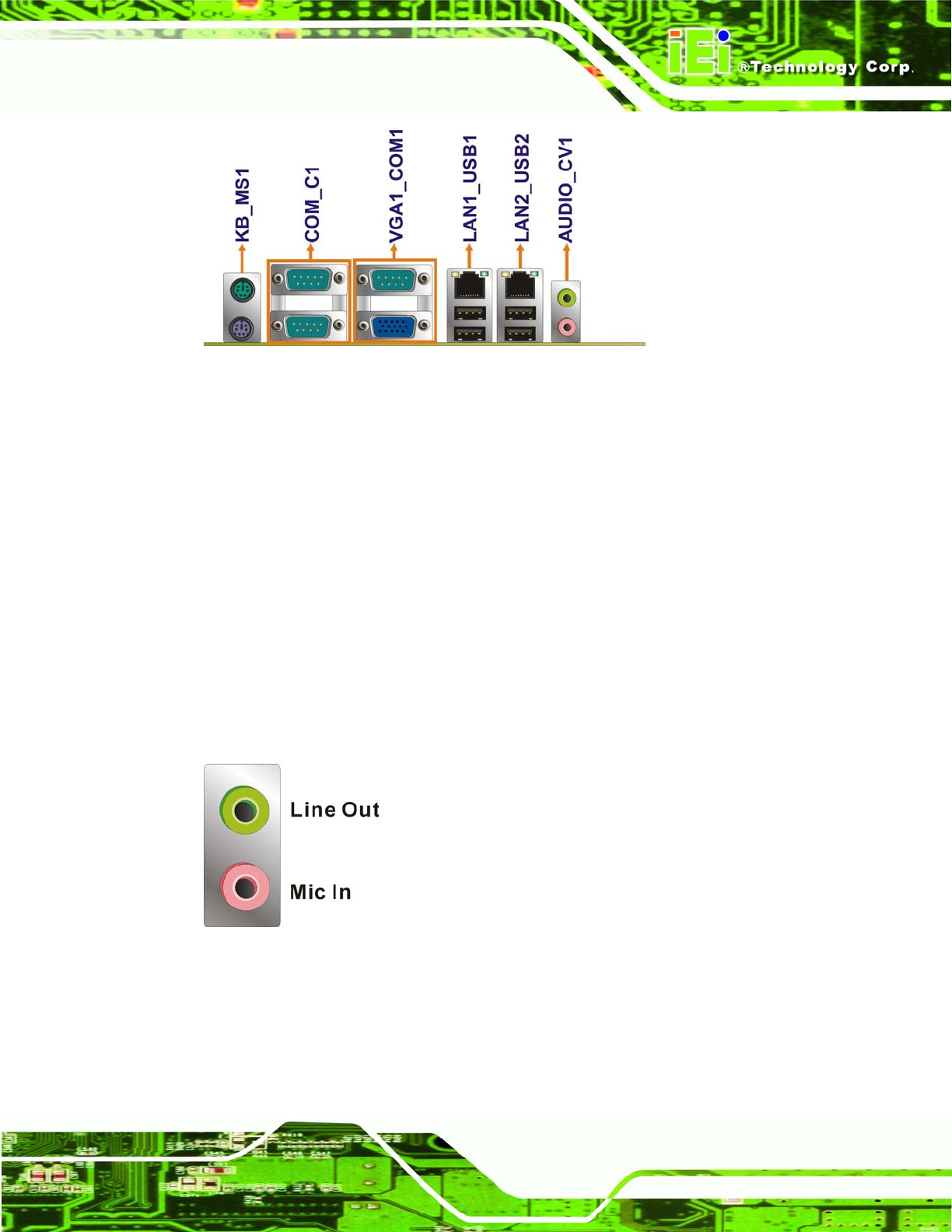

Figure 4-19: KINO-9652 External Interface Connectors
4.3.1 Audio Connectors
CN Label: AUDIO_CV1
CN Type:
Audio jack
CN Location: See
Figure 4-19
CN Pinouts: See
Figure 4-20
Line Out port (Lime): Connects a headphone or a speaker. In 4,6,8-channel
configuration, the function of this port becomes Front Speaker Out.
Microphone (Pink): Connects a microphone.
Figure 4-20: Audio Connectors
