KINO-9652 Mini-ITX SBC
Page 59

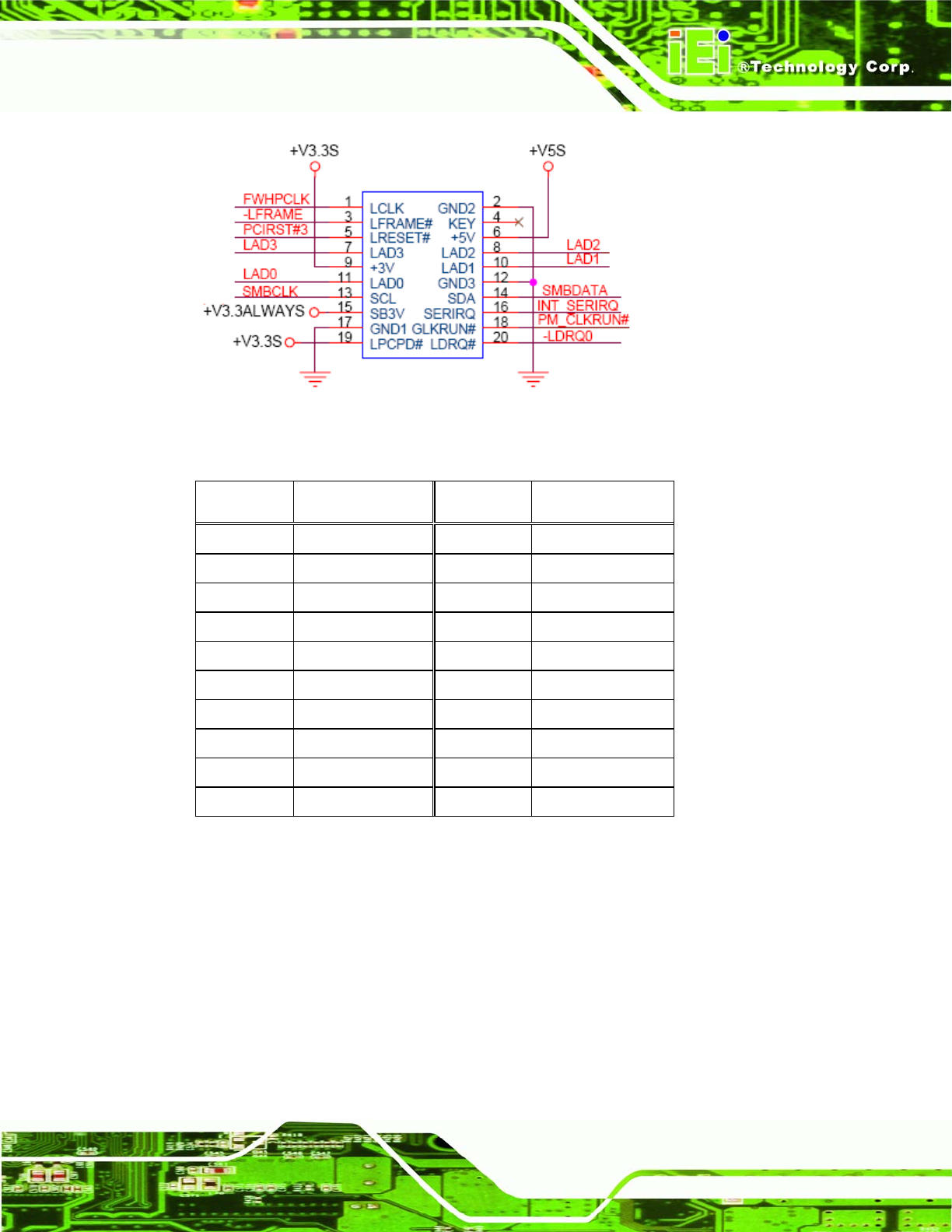

Figure 4-15: TPM Connector Pinout Locations
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 FWHPCLK 2 GND
3 LFRAME# 4 KEY
5 PCIRST# 6 VCC
7 LAD3 8 LAD2
9 VCC3 10 LAD1
11 LAD0 12 GND
13 SMBCLK 14 SMBDATA
15 3VDUAL 16 SERIRQ
17 GND 18 CLKRUN#
19 LPCPD# 20 LDRQ#
Table 4-16: TPM Connector Pinouts
4.2.15 TV Out Connector
CN Label: TV1
CN Type:
6-pin header (2x3)
CN Location: See
Figure 4-16
CN Pinouts: See
Table 4-17
