KINO-9652 Mini-ITX SBC
Page 56
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
23 2
nd
LVDS data3 output + 24 2
nd
LVDS data3 output -
25 GND 26 GND
27 +LCD (3.3V or 5V) 28 +LCD (3.3V or 5V)
29 +LCD (3.3V or 5V) 30 +LCD (3.3V or 5V)
Table 4-13: LVDS LCD Connector Pinouts
4.2.12 SATA Drive Connectors
CN Label: S_ATA1 and S_ATA2
CN Type:
7-pin SATA drive connectors (1x7)
CN Location: See
Figure 4-13
CN Pinouts: See
Table 4-14
The two SATA drive connectors are connected to four SATA II drives. SATA II drives
transfer data at speeds as high as 3.0Gbps.

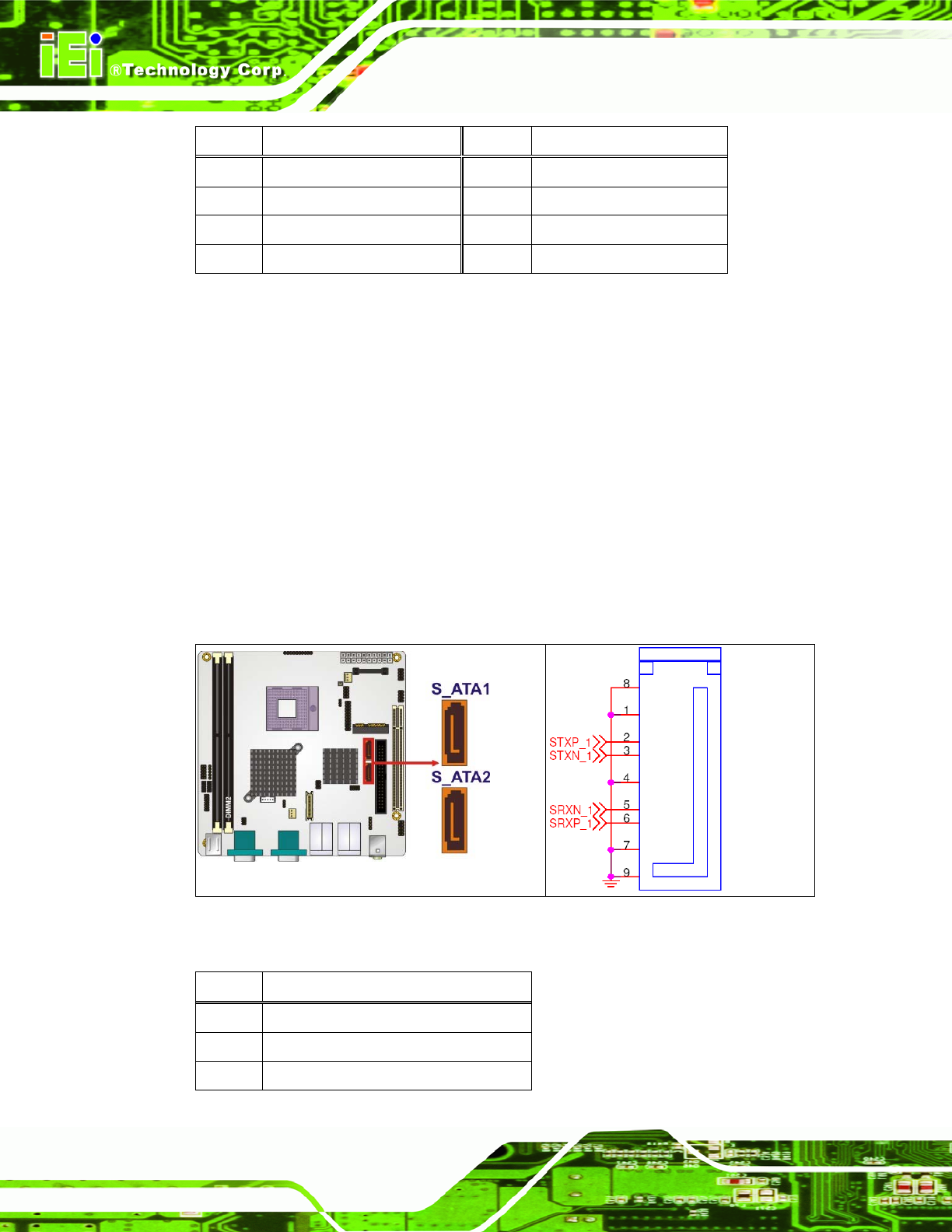

Figure 4-13: SATA Drive Connector Locations
PIN NO. DESCRIPTION
1 GND
2 TXP
3 TXN
