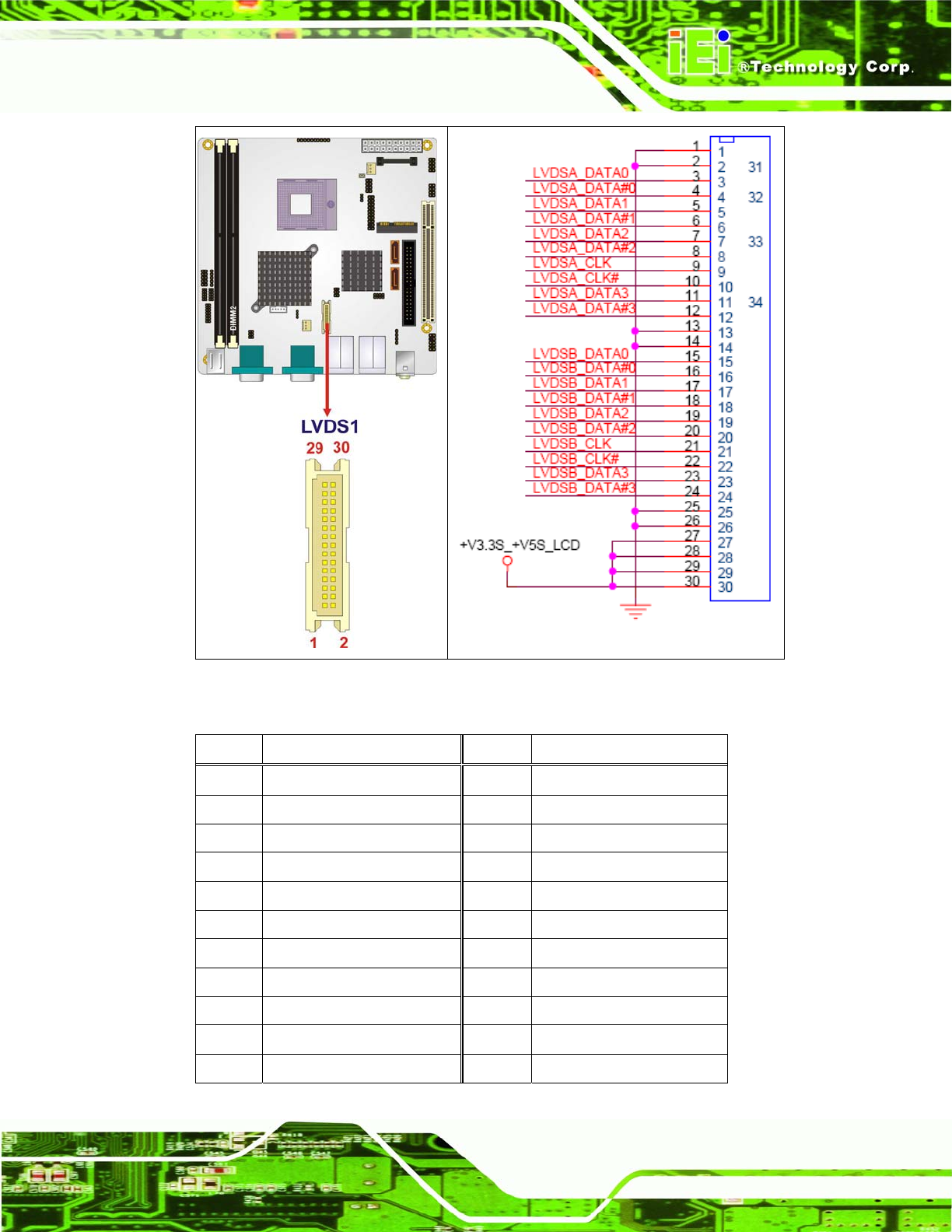

Figure 4-12: LVDS LCD Connector Location
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 GND 2 GND
3 1
st
LVDS data0 output + 4 1
st
LVDS data0 output -
5 1
st
LVDS data1 output + 6 1
st
LVDS data1 output -
7 1
st
LVDS data2 output + 8 1
st
LVDS data2 output -
9 1
st
LVDS clock output + 10 1
st
LVDS clock output -
11 1
st
LVDS data3 output + 12 1
st
LVDS data3 output -
13 GND 14 GND
15 2
nd
LVDS data0 output +
16 2
nd
LVDS data0 output -
17 2
nd
LVDS data1 output +
18 2
nd
LVDS data1 output -
19 2
nd
LVDS data2 output +
20 2
nd
LVDS data2 output -
21 2
nd
LVDS clock output + 22 2
nd
LVDS clock output -
