KINO-9652 Mini-ITX SBC
Page 54

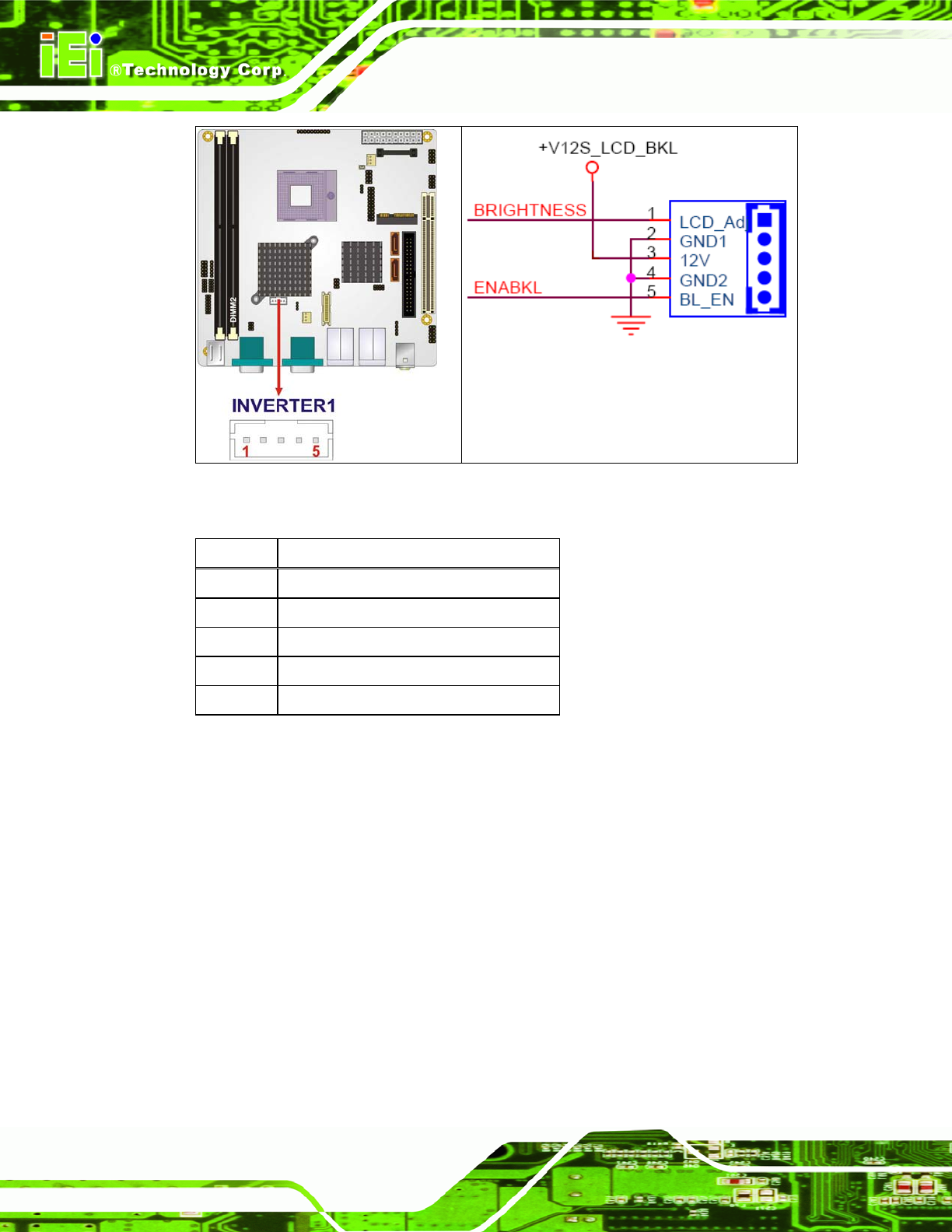

Figure 4-11: LCD Backlight Connector Location
PIN NO. DESCRIPTION
1 BRIGHTNESS
2 GND1
3 12V
4 GND2
5 BL_EN
Table 4-12: LCD Backlight Connector Pinouts
4.2.11 LVDS LCD connector
CN Label: LVDS1
CN Type:
30-pin crimp connector (2x15)
CN Location: See
Figure 4-12
CN Pinouts: See
Table 4-13
The connector supports one or two channel 24-bit LVDS panel.
