4.2.8 IDE Connector
CN Label: PIDE1
CN Type:
40-pin box header (2x20)
CN Location: See
Figure 4-9
CN Pinouts: See
Table 4-10
One primary 40-pin IDE device connector on the KINO-9652 motherboard supports
connectivity to ATA 100/66/33 IDE devices with data transfer rates up to 100MB/s.

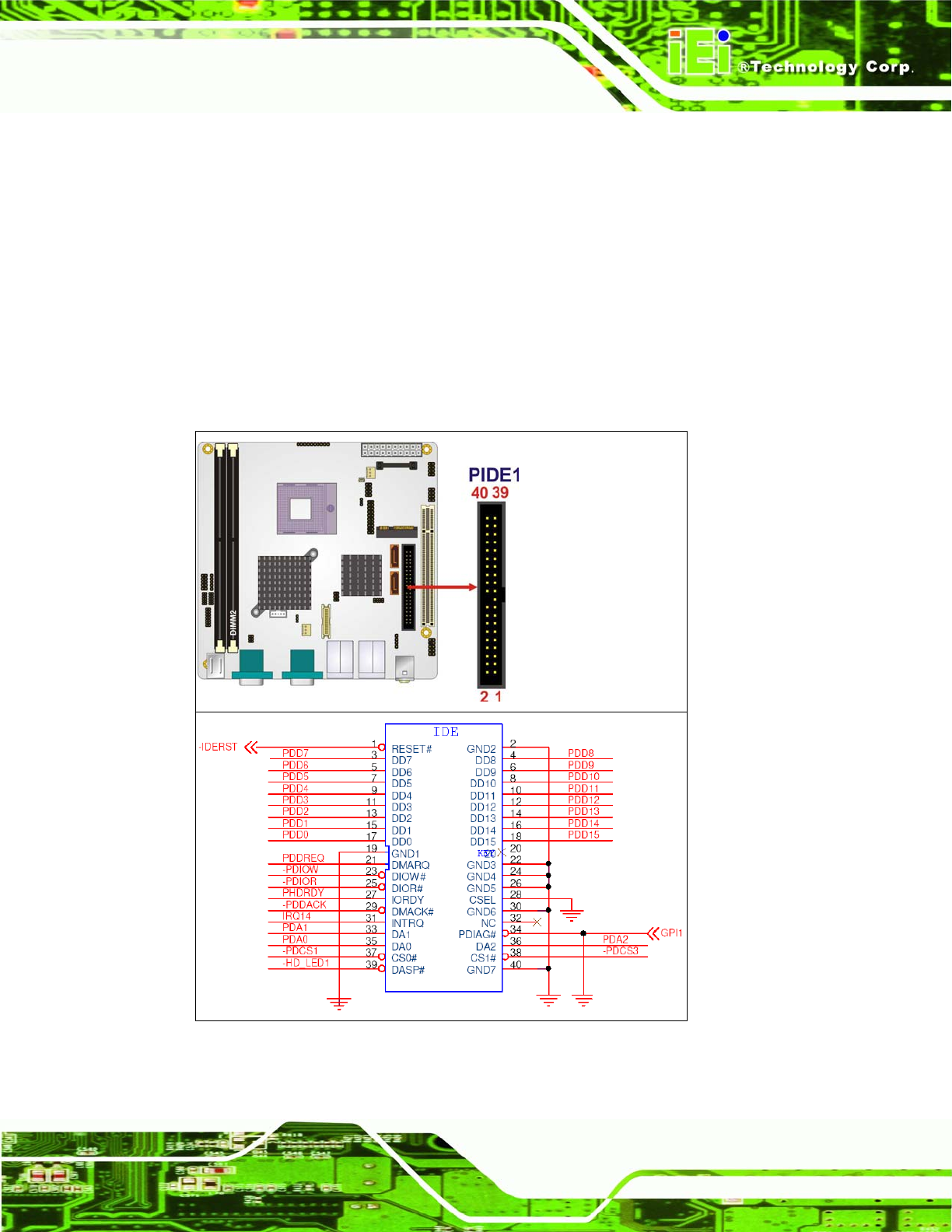

Figure 4-9: IDE Device Connector Location
