KINO-9652 Mini-ITX SBC
Page 49
The front panel connector connects to several external switches and indicators to monitor
and control the motherboard. These indicators and switches include:
Power
Power button
Reset button
Speaker
HDD

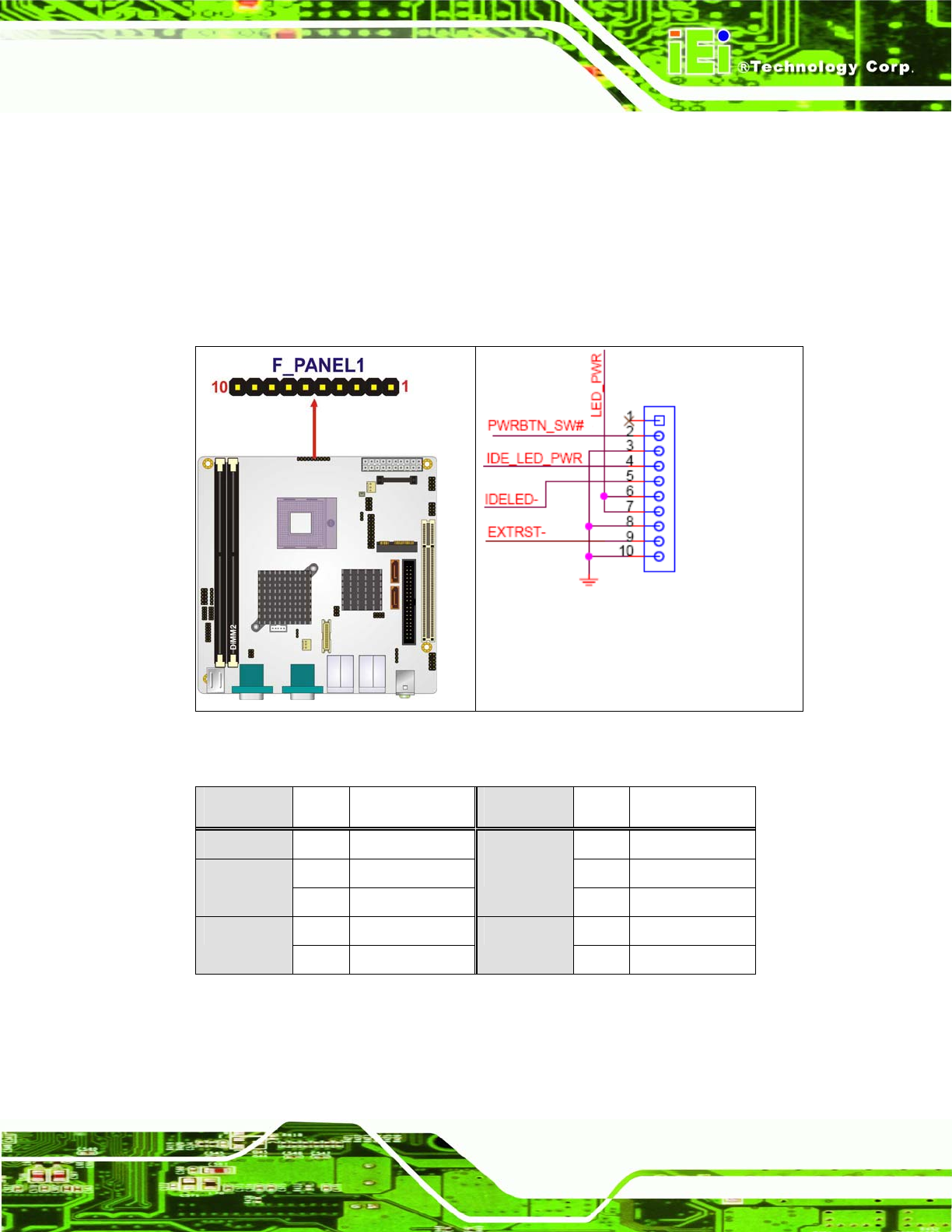

Figure 4-7: Front Panel Connector Location
FUNCTION PIN DESCRIPTION FUNCTION PIN DESCRIPTION
1 NC 6 PWR_LED+
2 PWR_BTN+ 7 PWR_LED+ Power
Button
3 PWR_BTN-
Power
LED
8 PWR_LED-
4 HDD_LED+ 9 RESET+ HDD LED
5 HDD_LED-
Reset
10 RESET-
Table 4-8: Front Panel Connector Pinouts
