KINO-9652 Mini-ITX SBC
Page 43
4.2.3 ATX Power Connector
WARNING:
Do not disconnect the ATX connector when the KINO-9652 is powered
on and running. Please make sure to switch off the ATX power supply
prior to disconnect the ATX connector. Incorrect usage may cause
permanently damage to the KINO-9652.
CN Label:
ATX1
CN Type:
20-pin ATX (2x10)
CN Location: See
Figure 4-4
CN Pinouts: See
Table 4-5
The ATX connector is connected to an external ATX power supply. Power is provided to
the system, from the power supply through this connector.

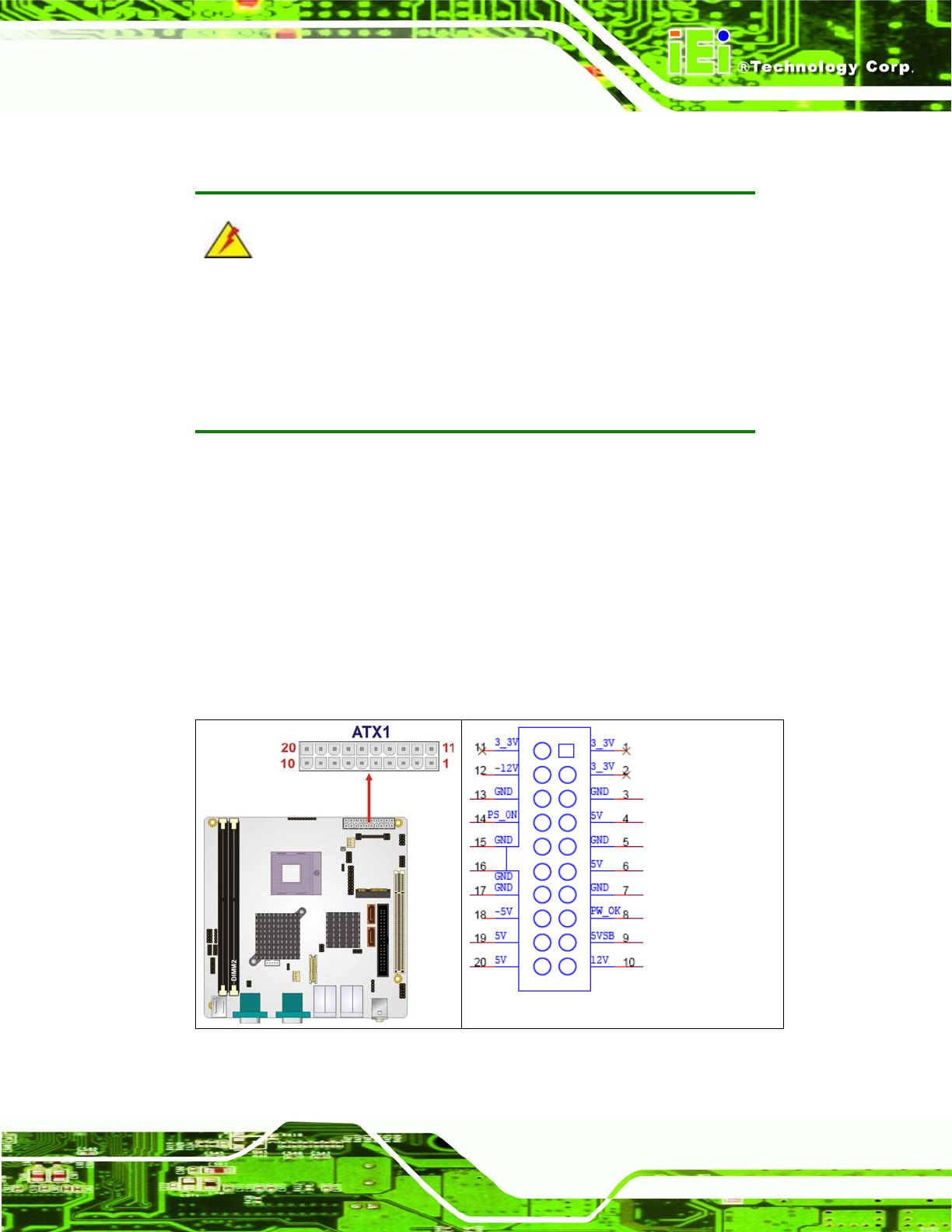

Figure 4-4: ATX Power Connector Pinout Locations
