KINO-9652 Mini-ITX SBC
Page 38
4.1 Peripheral Interface Connectors
Section 4.1.1 shows peripheral interface connector locations. Section 4.1.2 lists all the
peripheral interface connectors seen in Section
4.1.1.
4.1.1 KINO-9652 Layout

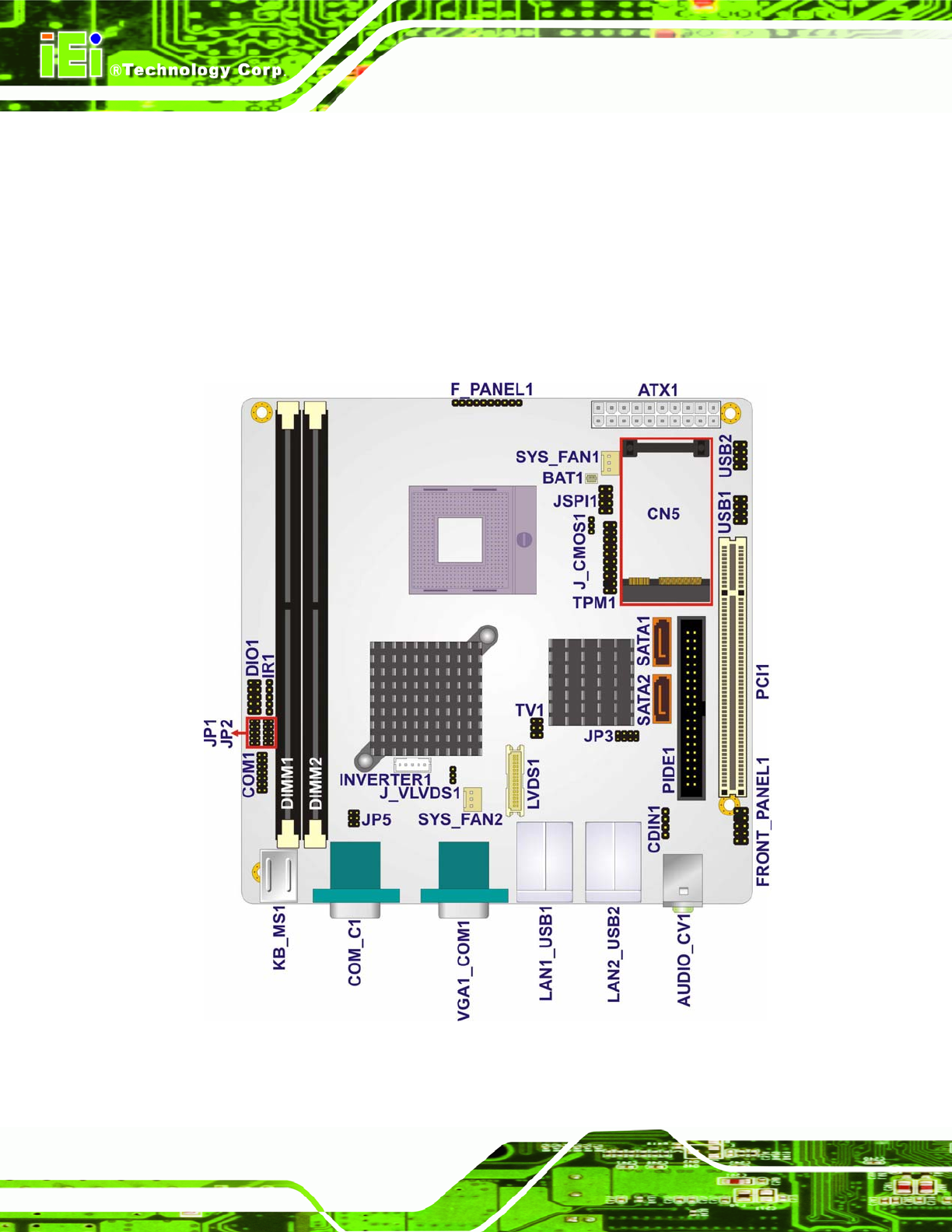

Figure 4-1 shows the on-board peripheral connectors, backplane peripheral connectors
and on-board jumpers.
Figure 4-1: Connector and Jumper Locations
