KINO-9652 Mini-ITX SBC
Page 201
Step 10: Enable or disable DHCP. DHCP is enabled by default. If DHCP is disabled, enter
the following TCP/IP settings:
Static TCP/IP address (the static TCP/IP address and Intel® AMI Host Name
must be different from those configured in the operating system)
Subnet mask
Default Gateway address (optional)
Preferred Domain Naming Services (DNS) serer address (optional)
Alternate DNS server address (optional)
Domain name (optional)
Step 11: Make other necessary settings in the Intel® MEBx depending on users’ need.

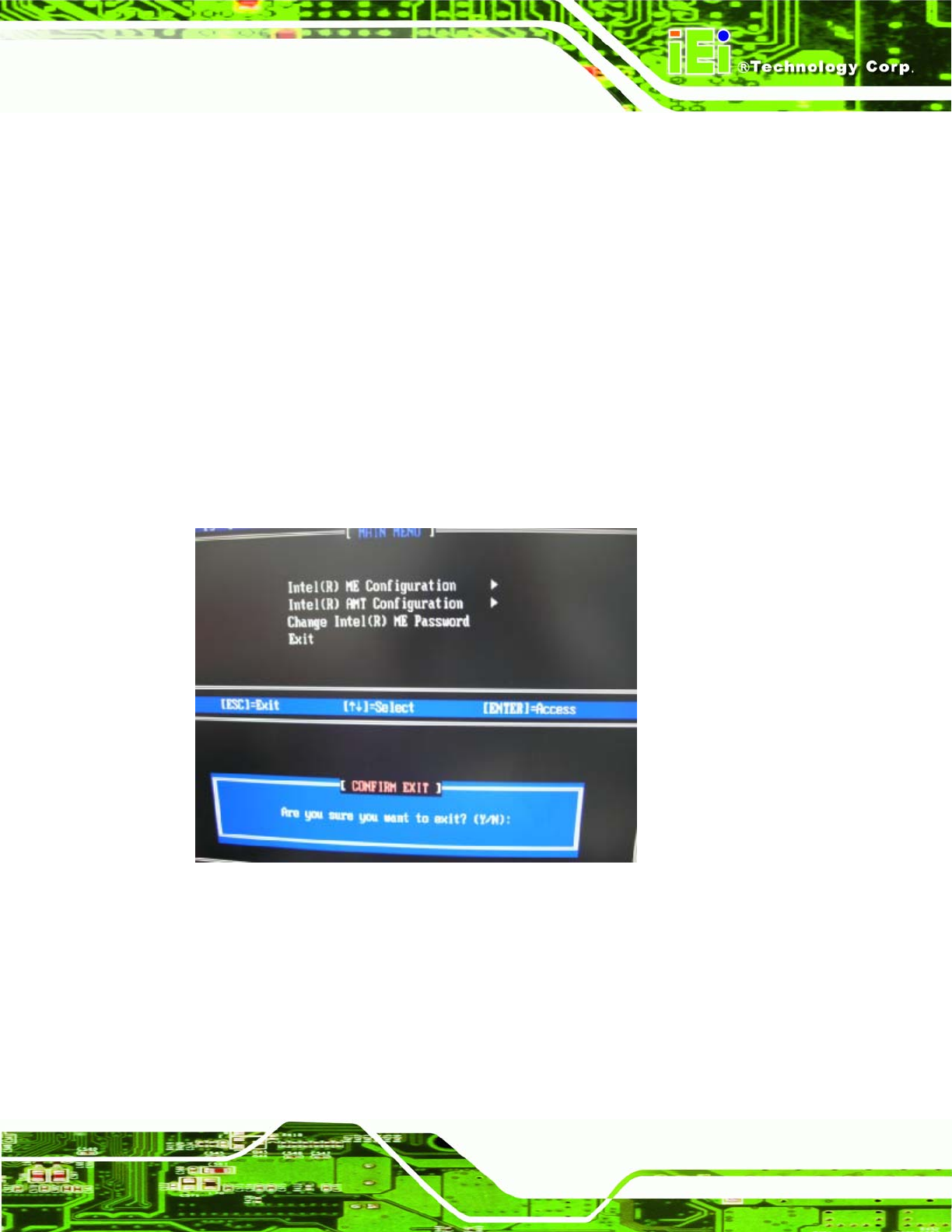

Step 12: To exit the Intel® MEBx, return to the main menu and select Exit. (
Figure 8-10)
Step 0:
Figure 8-10: Exit
