KINO-9652 Mini-ITX SBC
Page 199

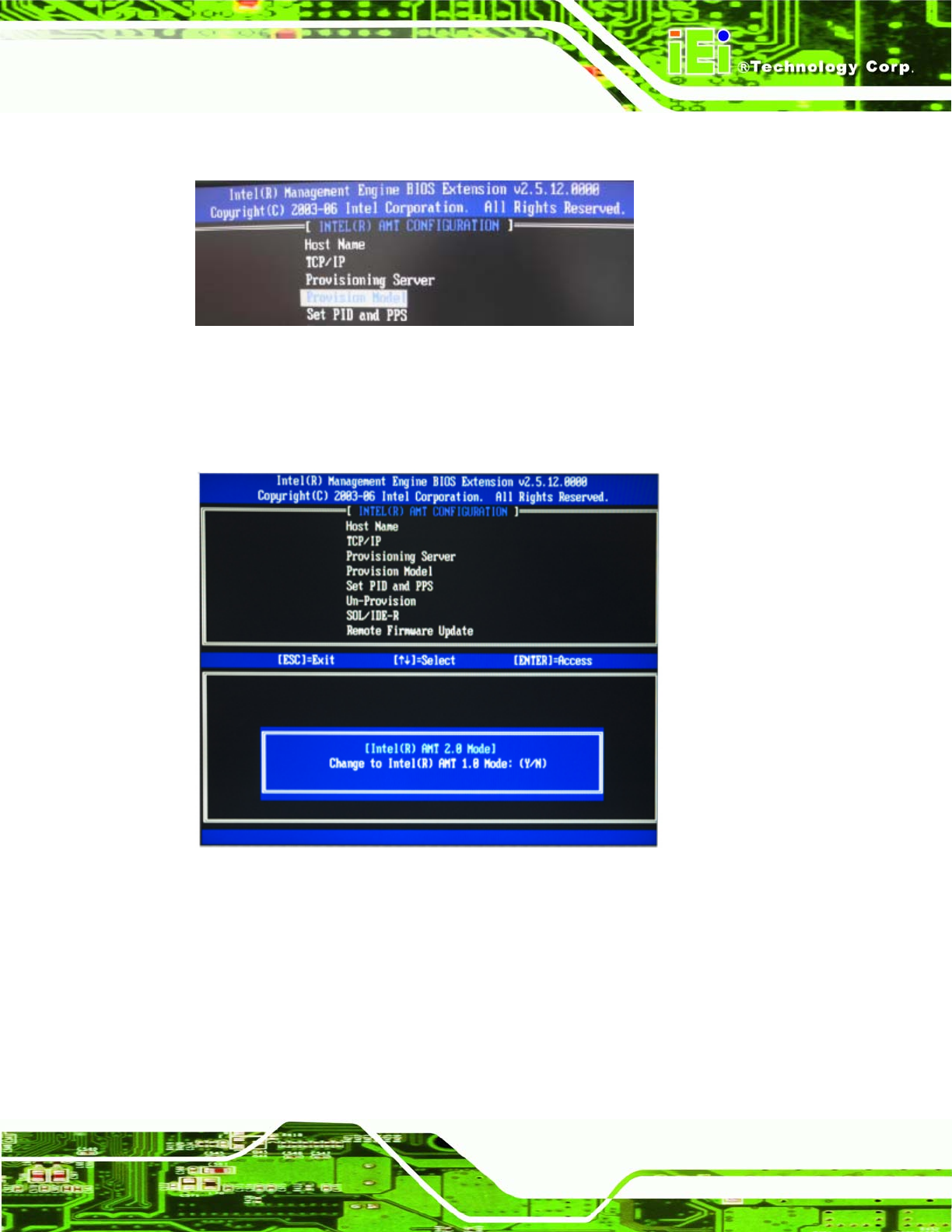

Step 6: Select Provision Model and press Enter. (Figure 8-6)
Figure 8-6: Provision Model
Step 7: When the screen in Figure 8-7 prompts, enter N and press Enter.
Figure 8-7: Intel® AMT 2.0 Mode
Step 8: A message prompts to confirm to Change to Small Business (Figure 8-8). Enter
Y and press Enter.
