KINO-9652 Mini-ITX SBC
Page 189
For the settings to take effect, the computer must be restarted. Click FINISH to
restart the computer. Step 0:
7.9 Intel® Active Management Technology Driver Installation
To install the Intel® Active Management Technology (IAMT) driver, please follow the steps
below:
Step 1: Select iAMT and Utilities from the list in
Figure 7-2.
Step 2: The screen in
Figure 7-61 appears.

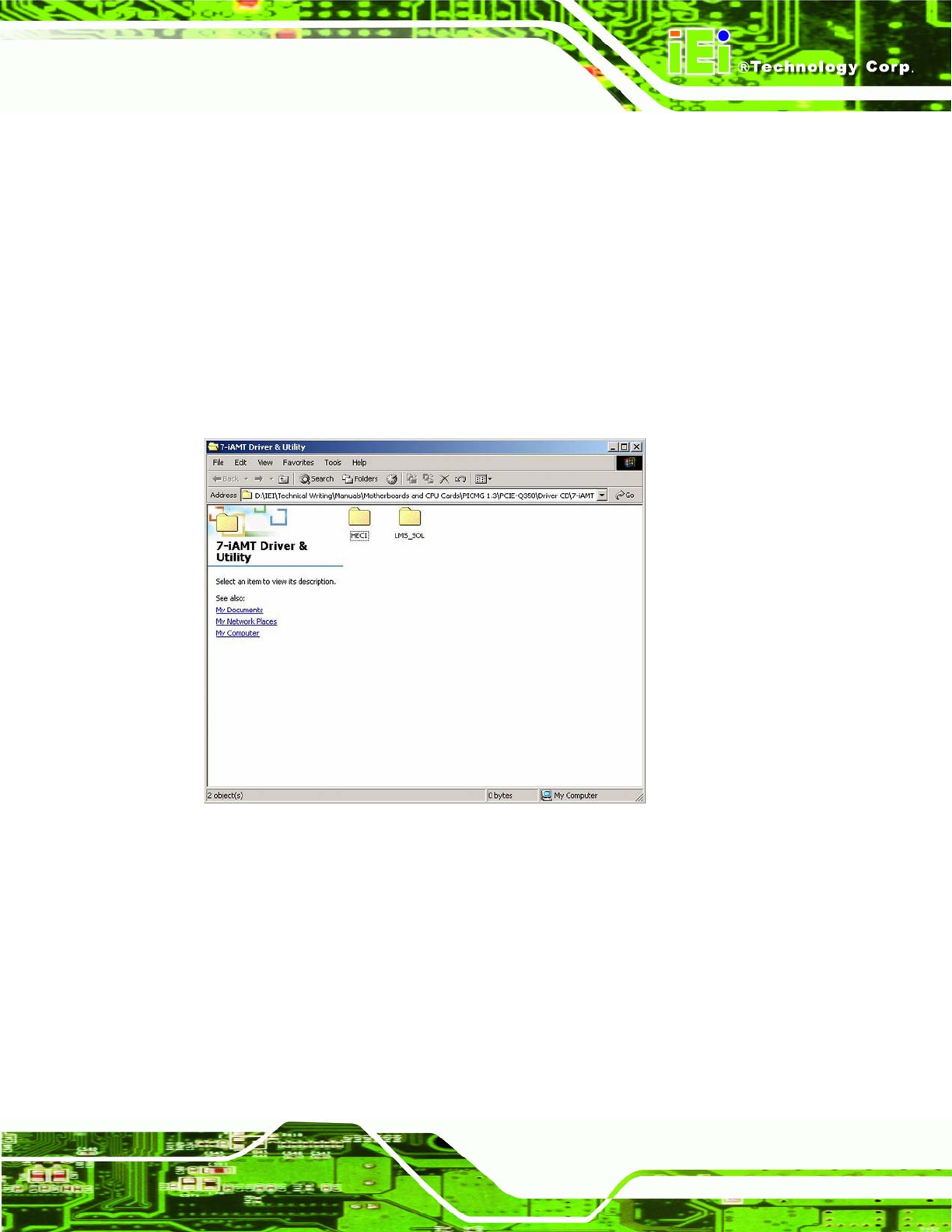

Figure 7-61: IAMT Driver Directory
Step 3: Click on the LMS_SOL directory icon. The window in
Figure 7-62 appears.
