KINO-9652 Mini-ITX SBC
Page 141

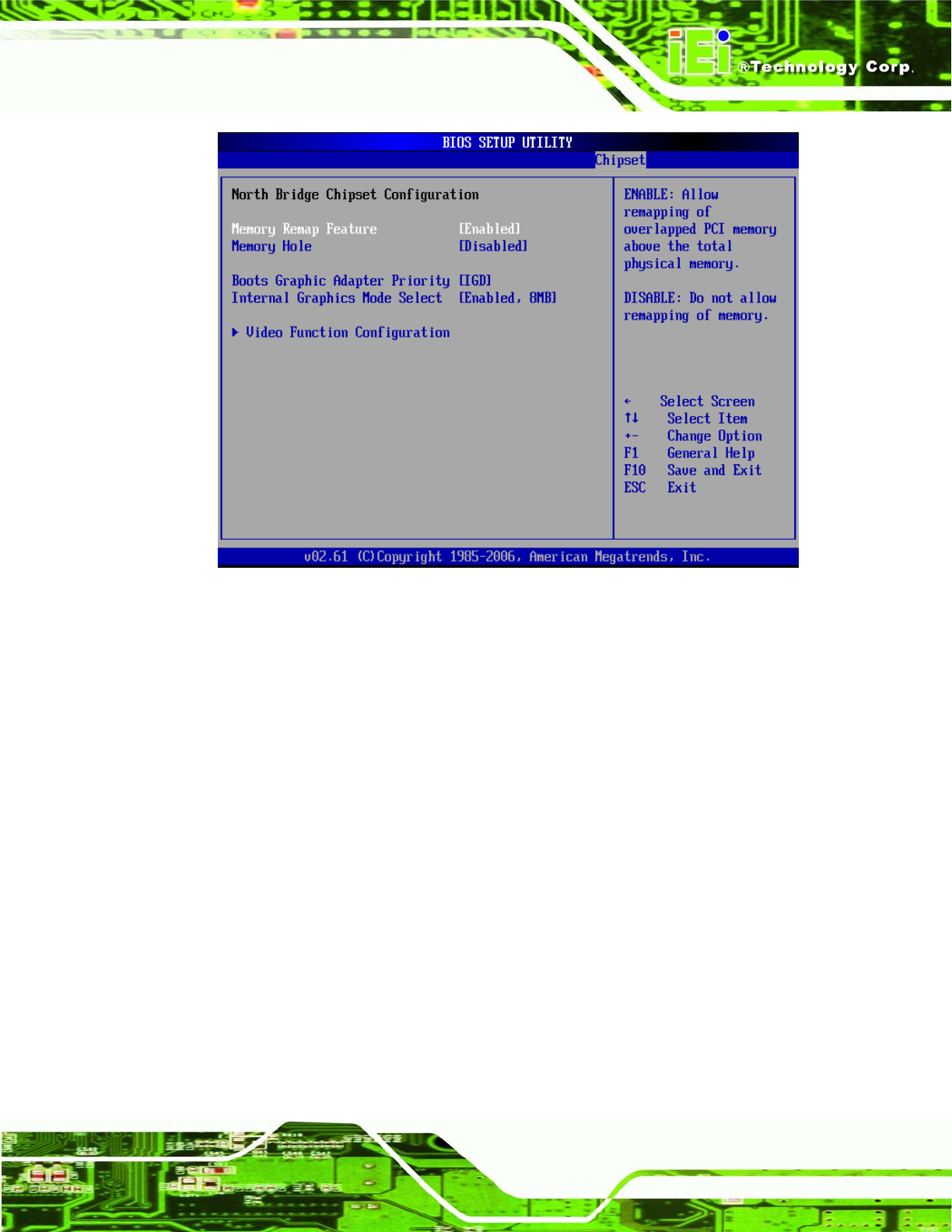

BIOS Menu 23:Northbridge Chipset Configuration
Memory Remap Feature [Enabled]
Use the Memory Remap Feature option to allow the overlapped PCI memory above the
total physical memory to be remapped.
Enabled DEFAULT
Overlapped PCI memory can be remapped
Disabled
Overlapped PCI memory cannot be remapped
Memory Hole [Disabled]
Use the Memory Hole option to reserve memory space between 15MB and 16MB for ISA
expansion cards that require a specified area of memory to work properly. If an older ISA
expansion card is used, please refer to the documentation that came with the card to see if
it is necessary to reserve the space.
Disabled DEFAULT
Memory is not reserved for ISA expansion cards
