KINO-9652 Mini-ITX SBC
Page 129
6.3.11 APM Configuration
The APM Configuration menu (BIOS Menu 9) allows the advanced power management
options to be configured.

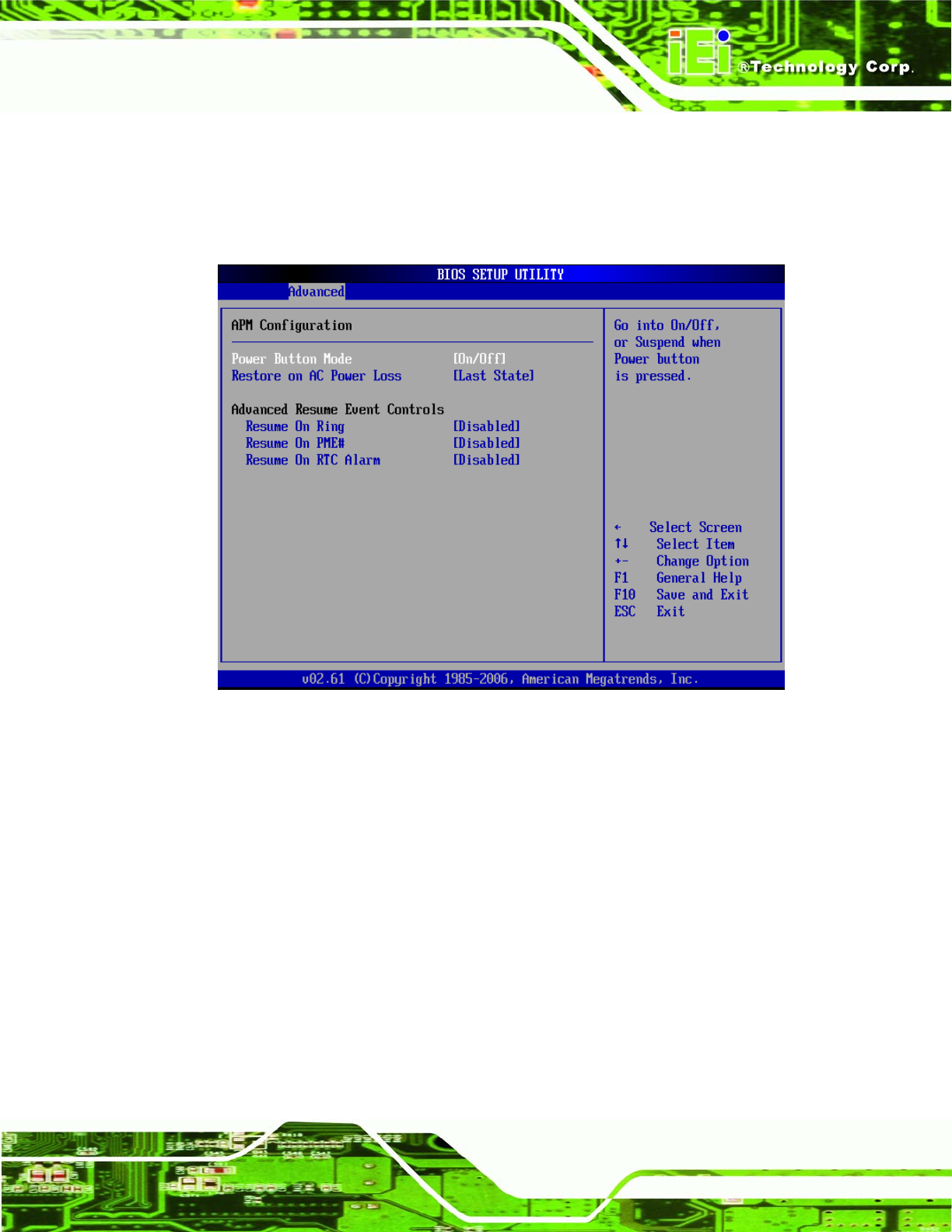

BIOS Menu 16:Advanced Power Management Configuration
Power Button Mode [On/Off]
Use the Power Button Mode BIOS to specify how the power button functions.
On/Off DEFAULT
When the power button is pressed the system is either
turned on or off
Suspend
When the power button is pressed the system goes into
suspend mode
