KINO-9652 Mini-ITX SBC
Page 128
6.3.10.1 ACPI Configuration
The ACPI Configuration menu (BIOS Menu 8) configures the Advanced Configuration
and Power Interface (ACPI) option.

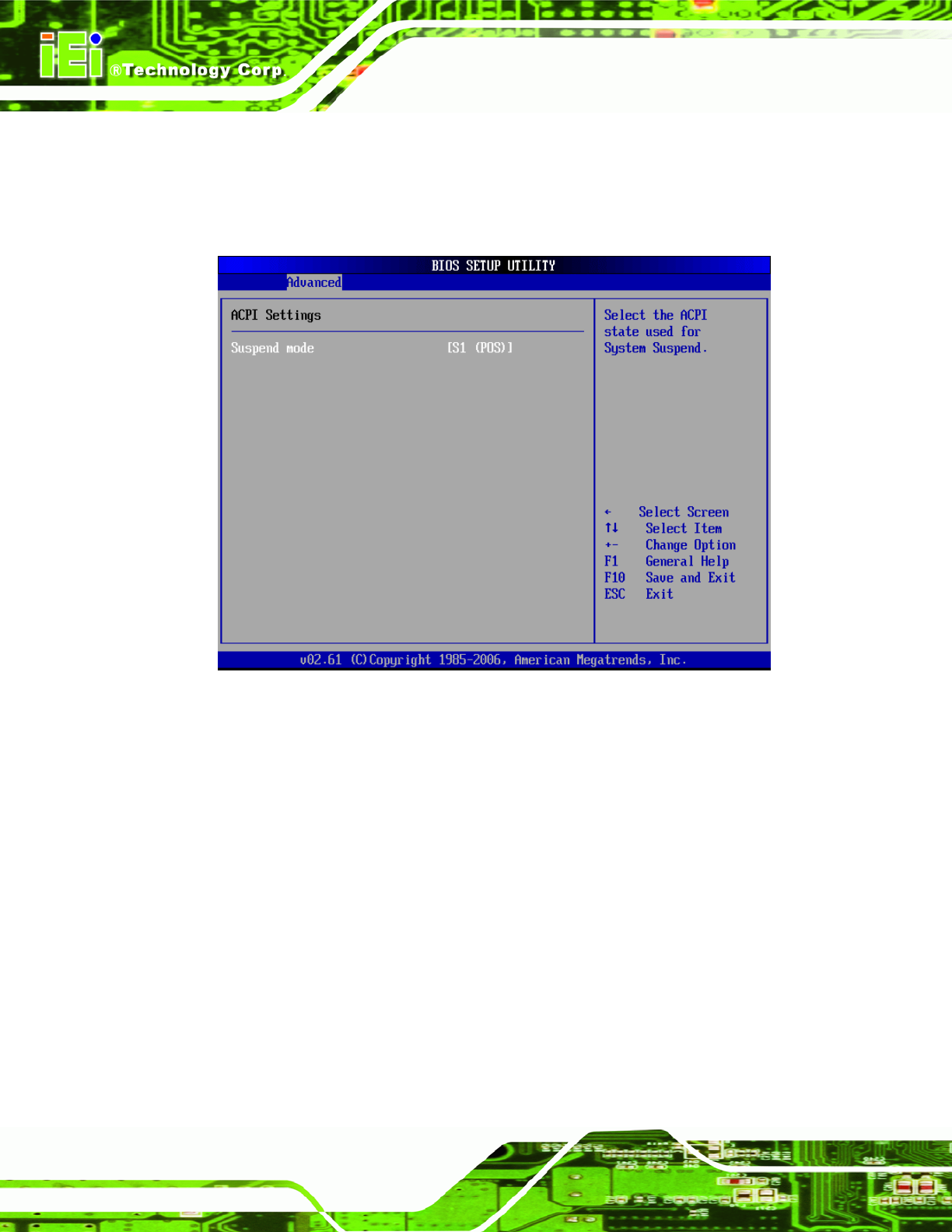

BIOS Menu 15: ACPI Configuration [Advanced\ Power Configuration]
Suspend Mode [S1(POS)]
Use the Suspend Mode option to specify the sleep state the system enters when it is not
being used.
S1 (POS) DEFAULT
The system enters S1(POS) sleep state. The system
appears off. The CPU is stopped; RAM is refreshed; the
system is running in a low power mode.
S3 (STR)
System appears off. The CPU has no power; RAM is in
slow refresh; the power supply is in a reduced power
mode.
