KINO-9652 Mini-ITX SBC
Page 125
6.3.9.1 USB Mass Storage Device Configuration
Use the USB Mass Storage Device Configuration menu (BIOS Menu 13) to configure
USB mass storage class devices.

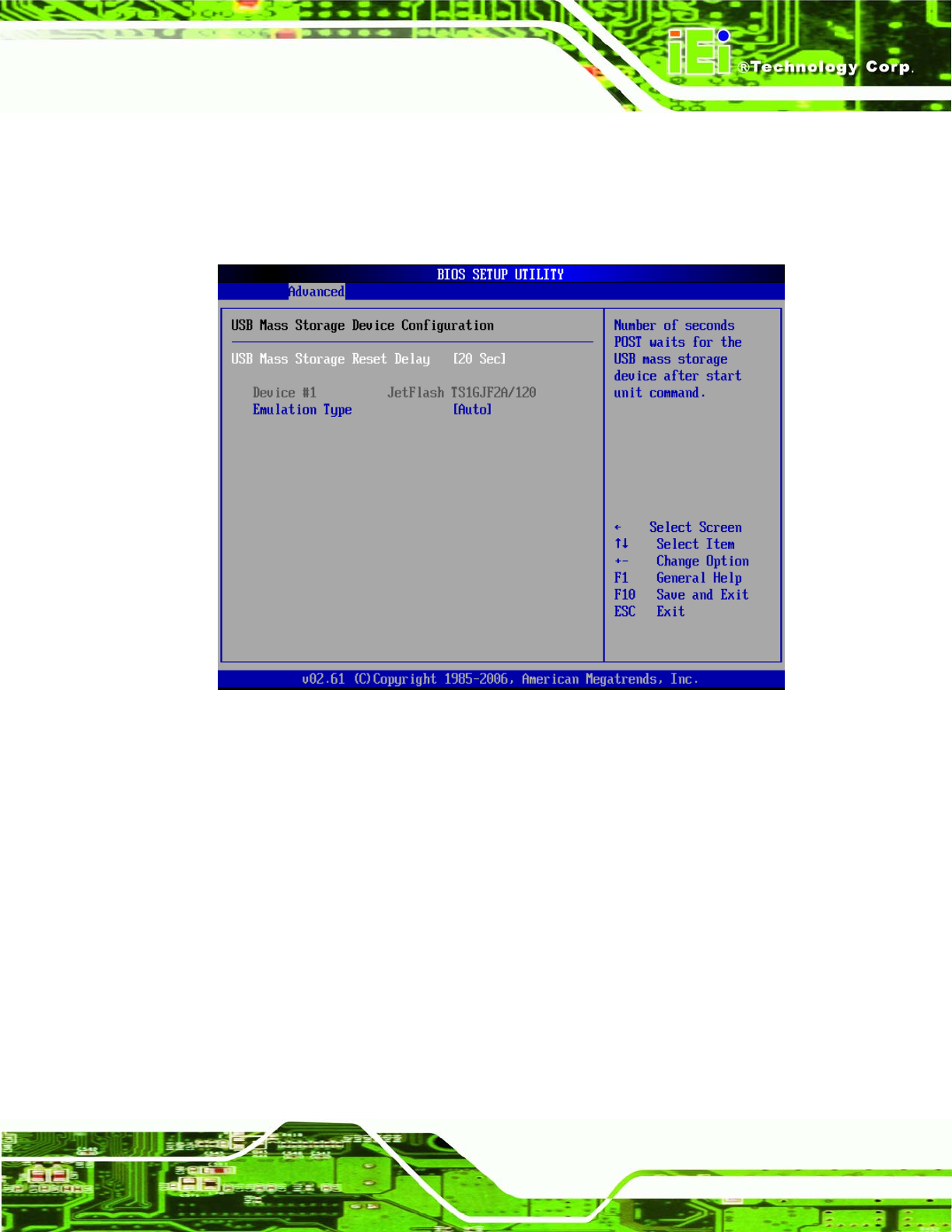

BIOS Menu 13: USB Mass Storage Device Configuration
USB Mass Storage Reset Delay [20 Sec]
Use the USB Mass Storage Reset Delay option to set the number of seconds POST
waits for the USB mass storage device after the start unit command.
10 Sec
POST waits 10 seconds for the USB mass storage
device after the start unit command.
20 Sec DEFAULT
POST waits 20 seconds for the USB mass storage
device after the start unit command.
30 Sec
POST waits 30 seconds for the USB mass storage
