KINO-9652 Mini-ITX SBC
Page 123

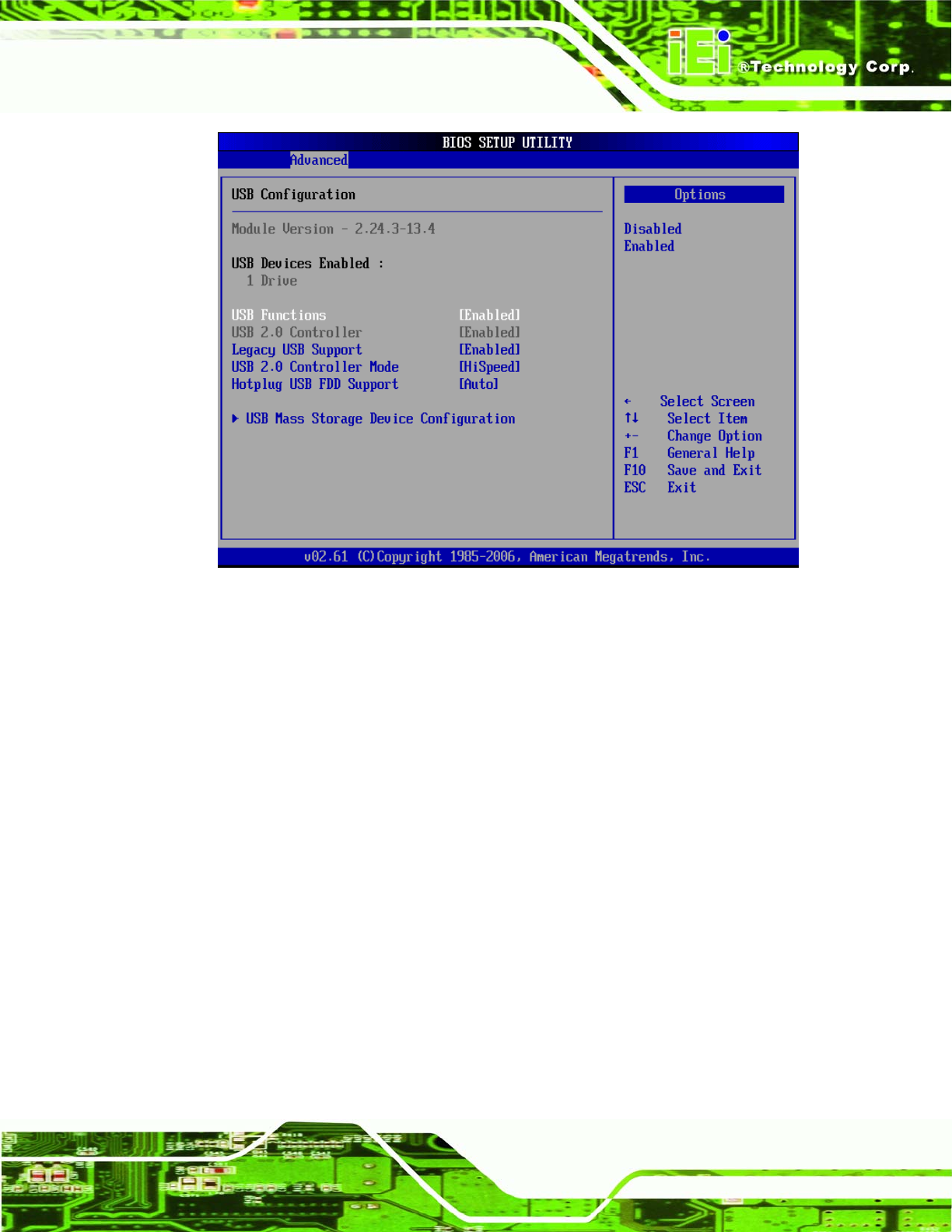

BIOS Menu 12: USB Configuration
USB Configuration
The USB Configuration field shows the system USB configuration. The items listed are:
Module Version: x.xxxxx.xxxxx
USB Devices Enabled
The USB Devices Enabled field lists the USB devices that are enabled on the system
USB Function [Enabled]
Use the USB Function BIOS option to enable or disable the USB function.
Disabled
USB function support disabled
Enabled DEFAULT
USB function support enabled
