KINO-9652 Mini-ITX SBC
Page 104
Remote Access Configuration (see Section 6.3.7)
Trusted Computing (see Section 6.3.8)
USB Configuration (see Section 6.3.9)
Power Configuration (see Section 6.3.10)

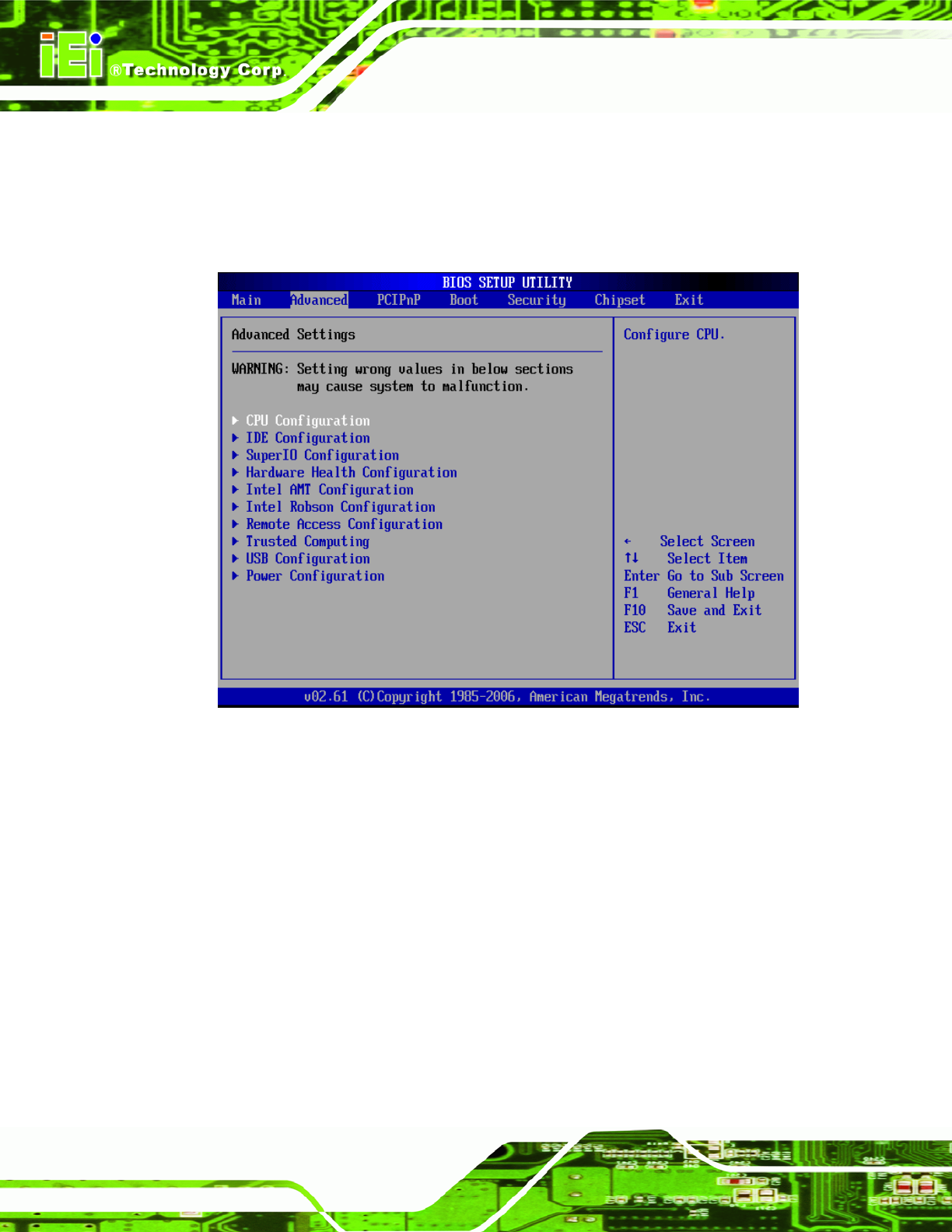

BIOS Menu 2: Advanced
6.3.1 CPU Configuration
Use the CPU Configuration menu (BIOS Menu 3) to view detailed CPU specifications
and configure the CPU.
