KINO-9652 Mini-ITX SBC
Page 94
To install these devices, connect the corresponding cable connector from the actual
device to the corresponding KINO-9652 external peripheral interface connector making
sure the pins are properly aligned.
5.7.1 Audio Connection
Audio signals are interfaced through two phone jack connections. Follow the steps below
to connect audio devices to the KINO-9652.
Step 1: Locate the audio phone jacks. The location of the audio phone jacks are
shown in Chapter 3.
Step 2: Insert audio phone jack plugs. Insert audio phone jack plugs into the audio
phone jacks on the external peripheral interface. See
Figure 5-19. Step 0:

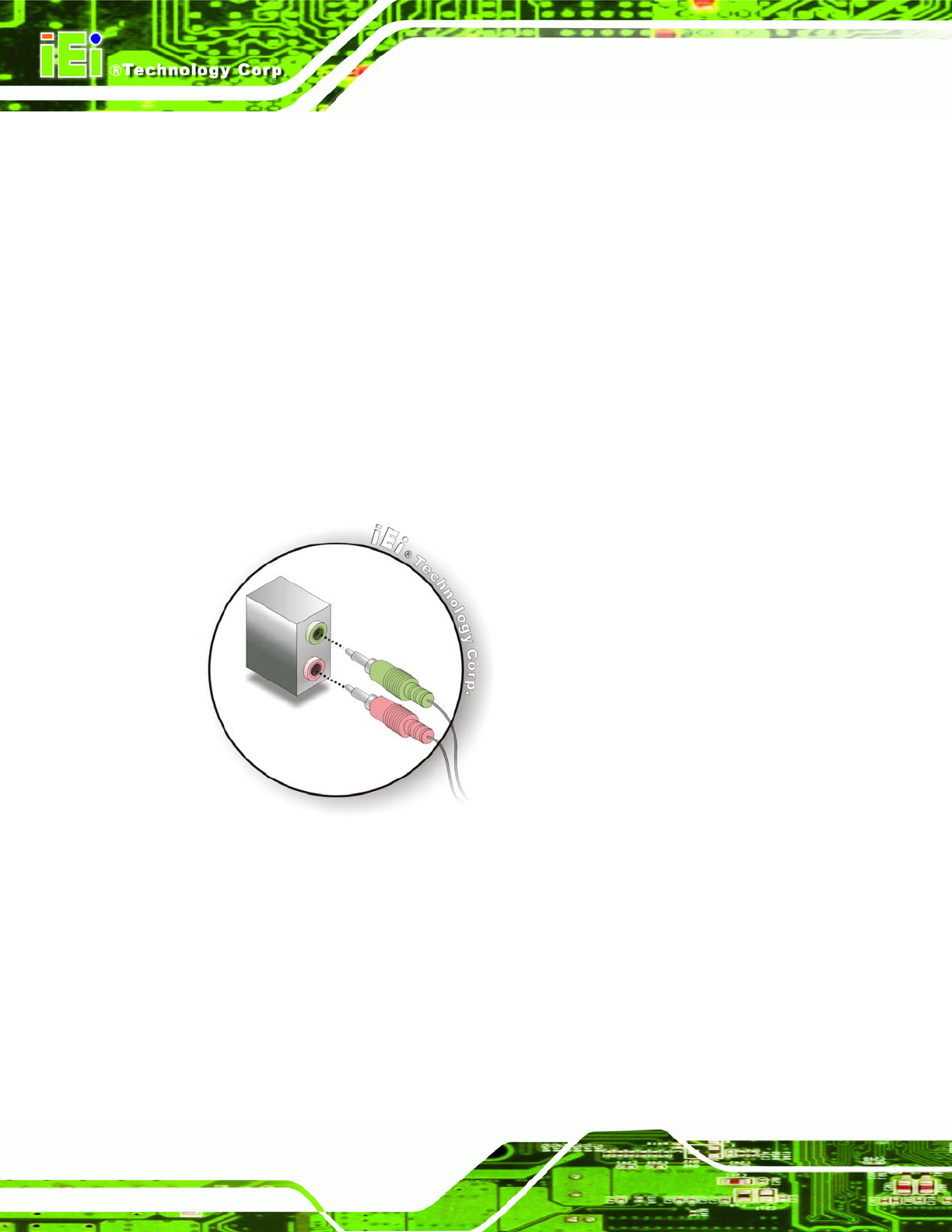

Figure 5-19: Audio Connectors
5.7.2 RJ-45 Ethernet and USB Connection
The KINO-9652 has two RJ-45 Ethernet and USB combo connectors on the external
peripheral interface panel for LAN communications and USB device. Follow the steps
below to connect an RJ-45 Ethernet and USB connectors to the KINO-9652.
Step 1: Locate the RJ-45 and USB combo connector. The location of the RJ-45 and
