KINO-9652 Mini-ITX SBC
Page 86
LVDS Resolution Select Description
Open 640 x 480 (18-bit) Default
Short 1-2 800 x 600 (18-bit)
Short 3-4 1024 x 768 (18-bit)
Short 1-2 & 3-4 1280 x 1024 (48-bit)
Short 3-4 & 5-6 1600 x 1200 (48-bit)
Short 3-4 & 7-8 1024 x 768 (24-bit)
Table 5-7: LVDS Resolution Selection Jumper Settings

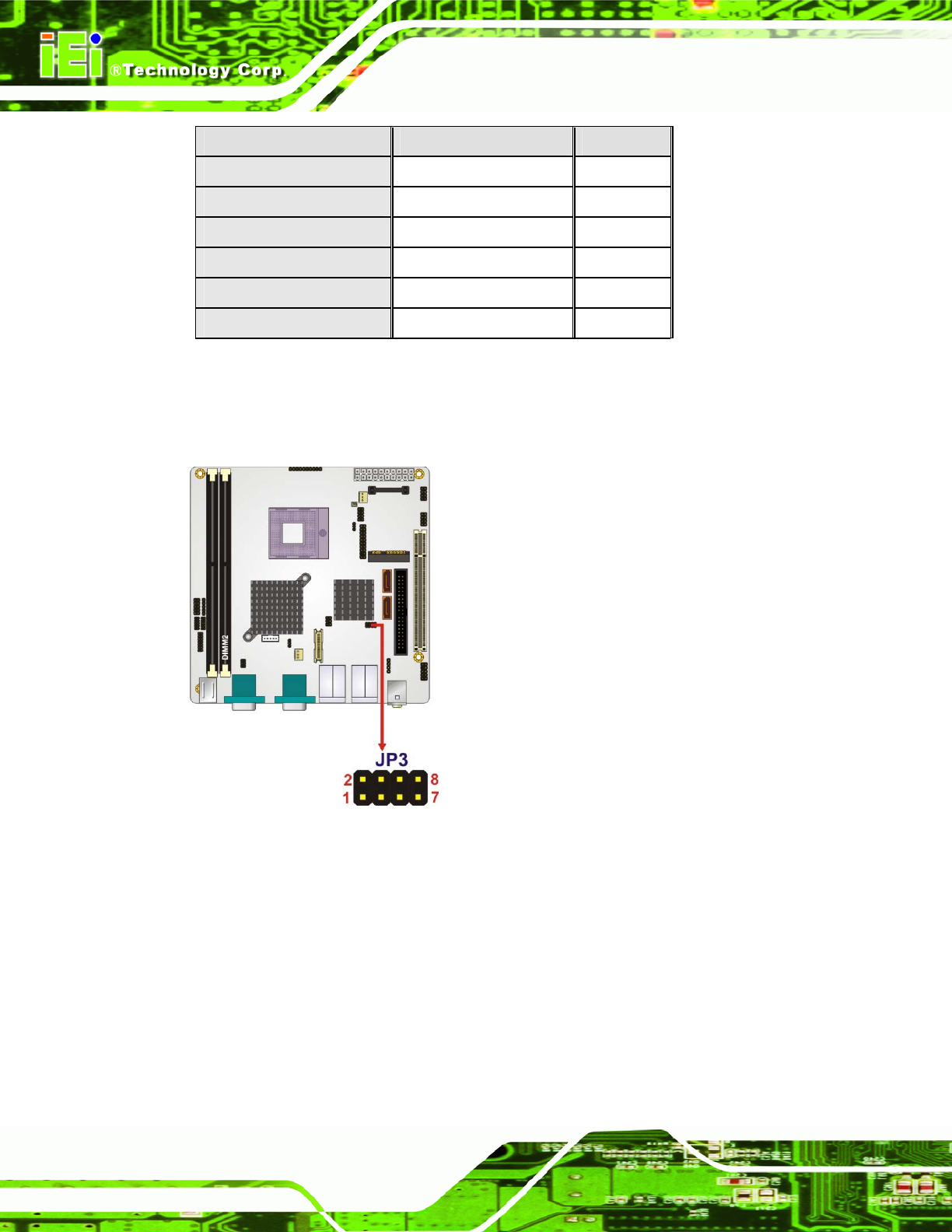

The LVDS Voltage Selection jumper location is shown in Figure 5-12.
Figure 5-12: LVDS Resolution Selection Jumper Pinout Locations
5.4.6 CF Card Setup
Jumper Label: JCF1
Jumper Type:
2-pin header
Jumper Settings:
See
Table 5-8
Jumper Location:
See
Figure 5-13
