KINO-9652 Mini-ITX SBC
Page 85
LVDS Voltage Select Description
Short 1-2 +3V Default
Short 2-3 +5V
Table 5-6: LVDS Voltage Selection Jumper Settings
The LVDS Voltage Selection jumper location is shown in Figure 5-11.

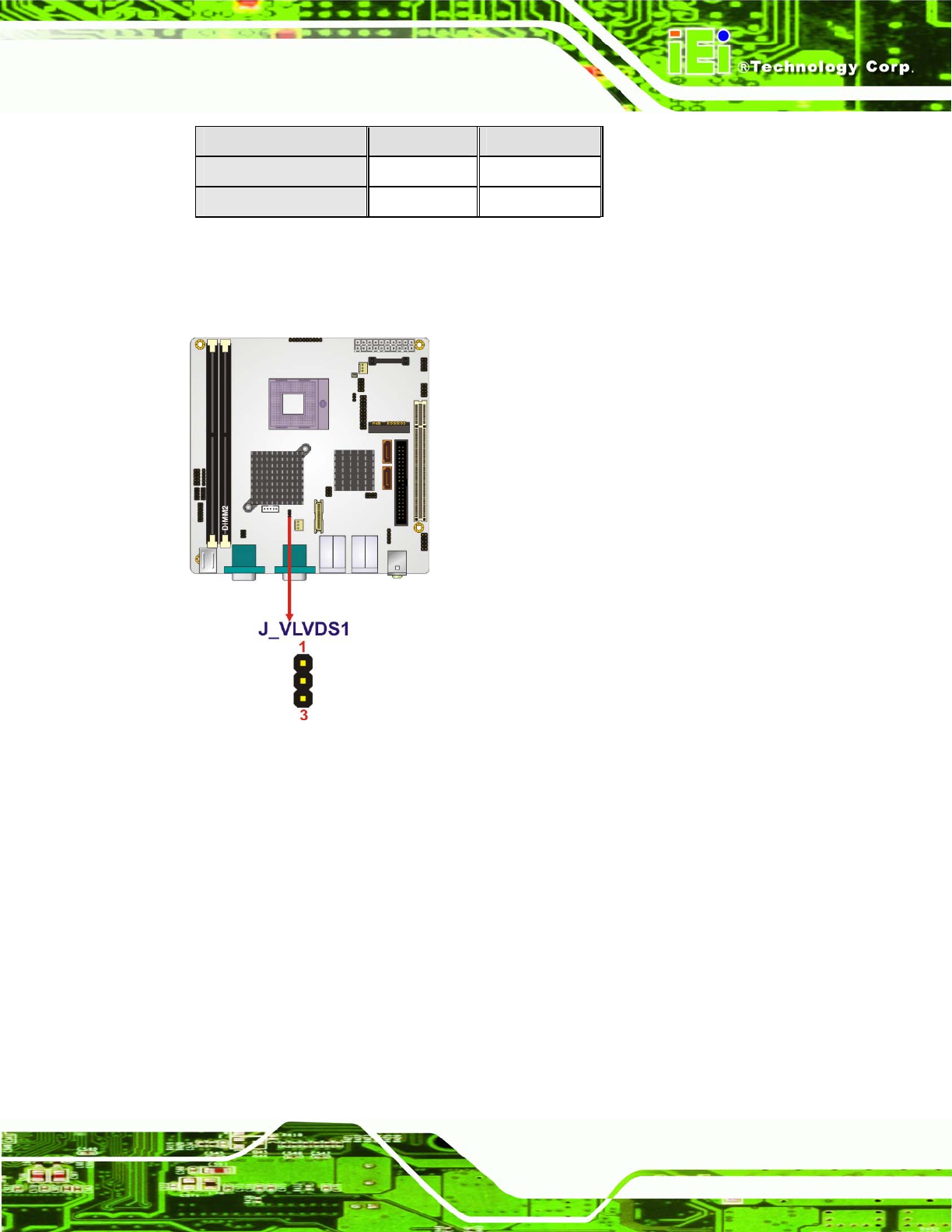

Figure 5-11: LVDS Voltage Selection Jumper Pinout Locations
5.4.5 LVDS Panel Resolution Selection
Jumper Label: JP3
Jumper Type:
8-pin header
Jumper Settings: See
Table 5-7
Jumper Location: See
Figure 5-12
The LVDS Panel Resolution Selection jumper allows the LVDS screen resolution to be
set. The LVDS Panel Resolution Selection jumper settings are shown in
Table 5-7.
