KINO-9652 Mini-ITX SBC
Page 84

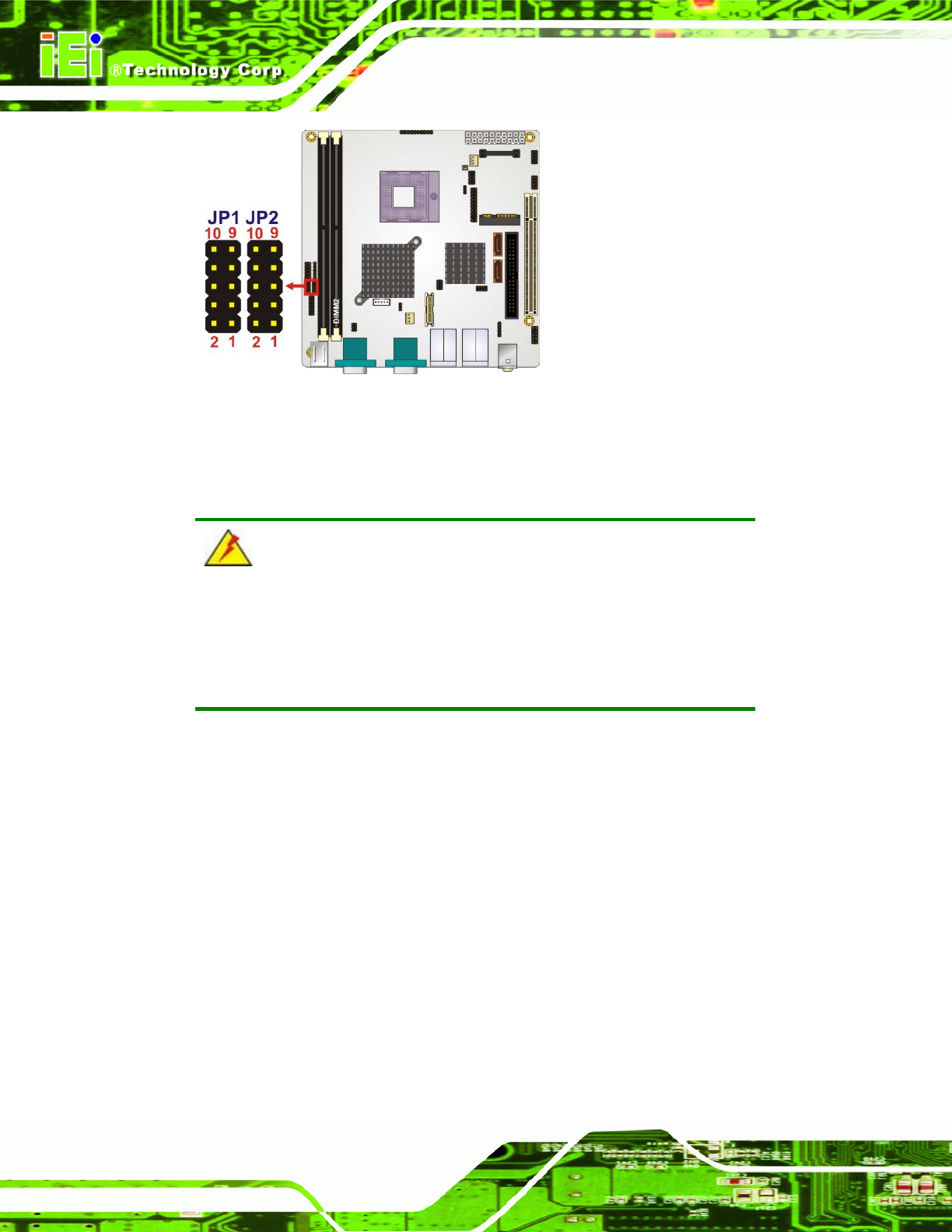

Figure 5-10: COM Port Pin 9 Setting Jumper Locations
5.4.4 LVDS Voltage Selection
WARNING:
Permanent damage to the screen and KINO-9652 may occur if the
wrong voltage is selected with this jumper. Please refer to the user
guide that cam with the monitor to select the correct voltage.
Jumper Label: J_VLVDS1
Jumper Type:
3-pin header
Jumper Settings: See
Table 5-6
Jumper Location: See
Figure 5-11
The LVDS Voltage Selection jumper allows the LVDS screen voltage to be set. The
LVDS Voltage Selection jumper settings are shown in
Table 5-6.
