KINO-9652 Mini-ITX SBC
Page 82
The COM 4 Function Select jumper sets the communication protocol used by the second
serial communications port (COM 4) as RS-232, RS-422 or RS-485. The COM 4 Function
Select settings are shown in
Figure 5-9.
COM 4 Function Select Description
Short 1-2 RS-232 Default
Short 3-4 RS-422
Short 5-6 RS-485
Table 5-3: COM 4 Function Select Jumper Settings
The COM 4 Function Select jumper location is shown in Table 5-3.

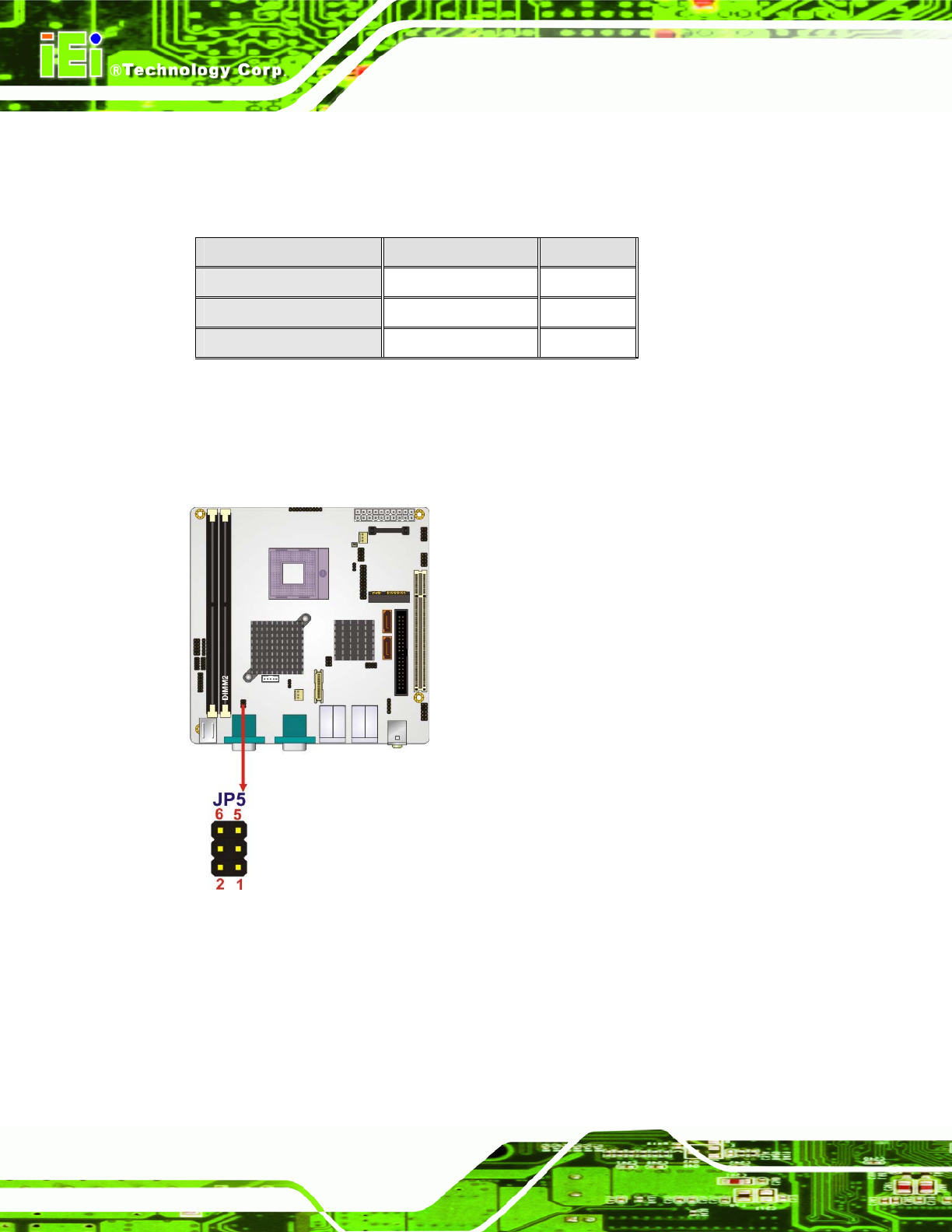

Figure 5-9: COM 4 Function Select Jumper Location
5.4.3 COM Port Pin 9 Setting Jumpers
Jumper Label: JP1 and JP2
Jumper Type:
10-pin header
