KINO-9652 Mini-ITX SBC

Page 81

The clear CMOS jumper settings are shown in Table 5-2.

Clear CMOS Description

Short 1 - 2 Keep CMOS Setup

Default

Short 2 - 3 Clear CMOS Setup

Table 5-2: Clear CMOS Jumper Settings

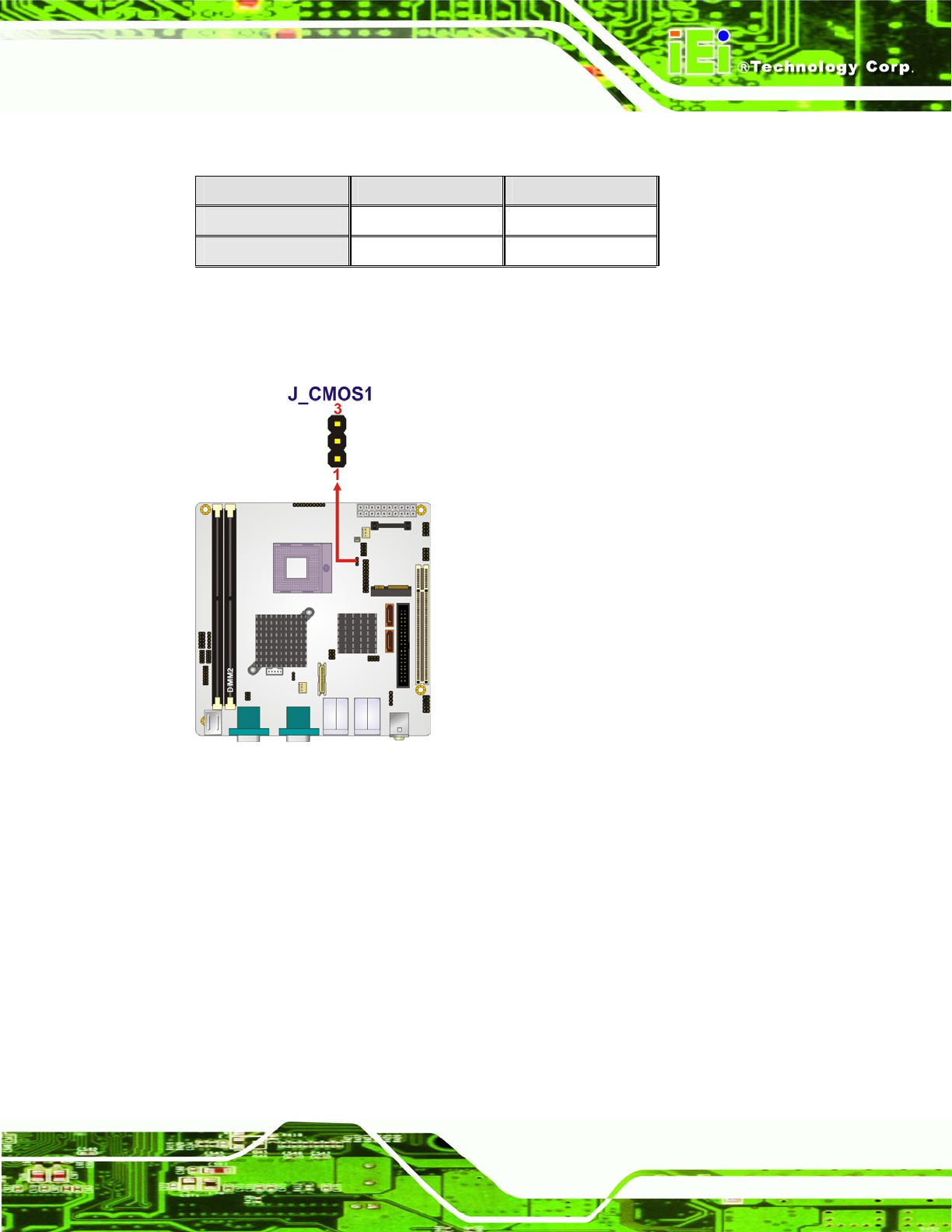

The location of the clear CMOS jumper is shown in Figure 5-8 below.

Figure 5-8: Clear CMOS Jumper

5.4.2 COM 4 Function Select Jumper

Jumper Label: JP5

Jumper Type:

6-pin header

Jumper Settings: See

Table 5-3

Jumper Location: See

Figure 5-9
