KINO-9453 Mini-ITX Motherboard
Page 82

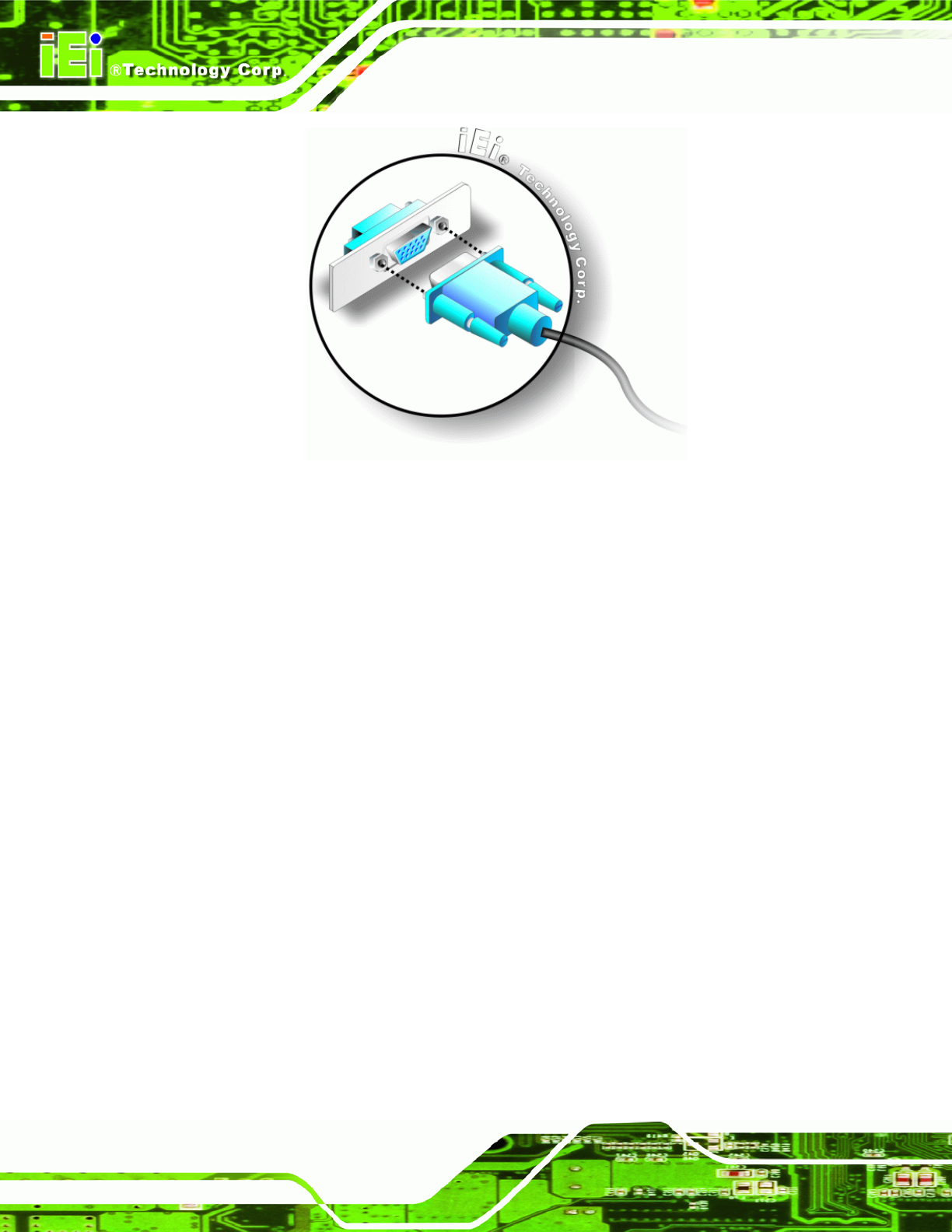

Figure 5-21: VGA Connector
Step 4: Secure the connector. Secure the DB-15 VGA connector from the VGA
monitor to the external interface by tightening the two retention screws on either
side of the connector. Step 0:
5.7.5 Serial Device Connection
The KINO-9453 has two female DB-9 connectors on the external peripheral interface
panel for serial devices. Follow the steps below to connect a serial device to the
KINO-9453.
Step 1: Locate the DB-9 connector. The location of the DB-9 connector is shown in
Chapter 3.
Step 2: Insert the serial connector. Insert the DB-9 connector of a serial device into
the DB-9 connector on the external peripheral interface. See
Figure 5-22.
