KINO-9453 Mini-ITX Motherboard
Page 79

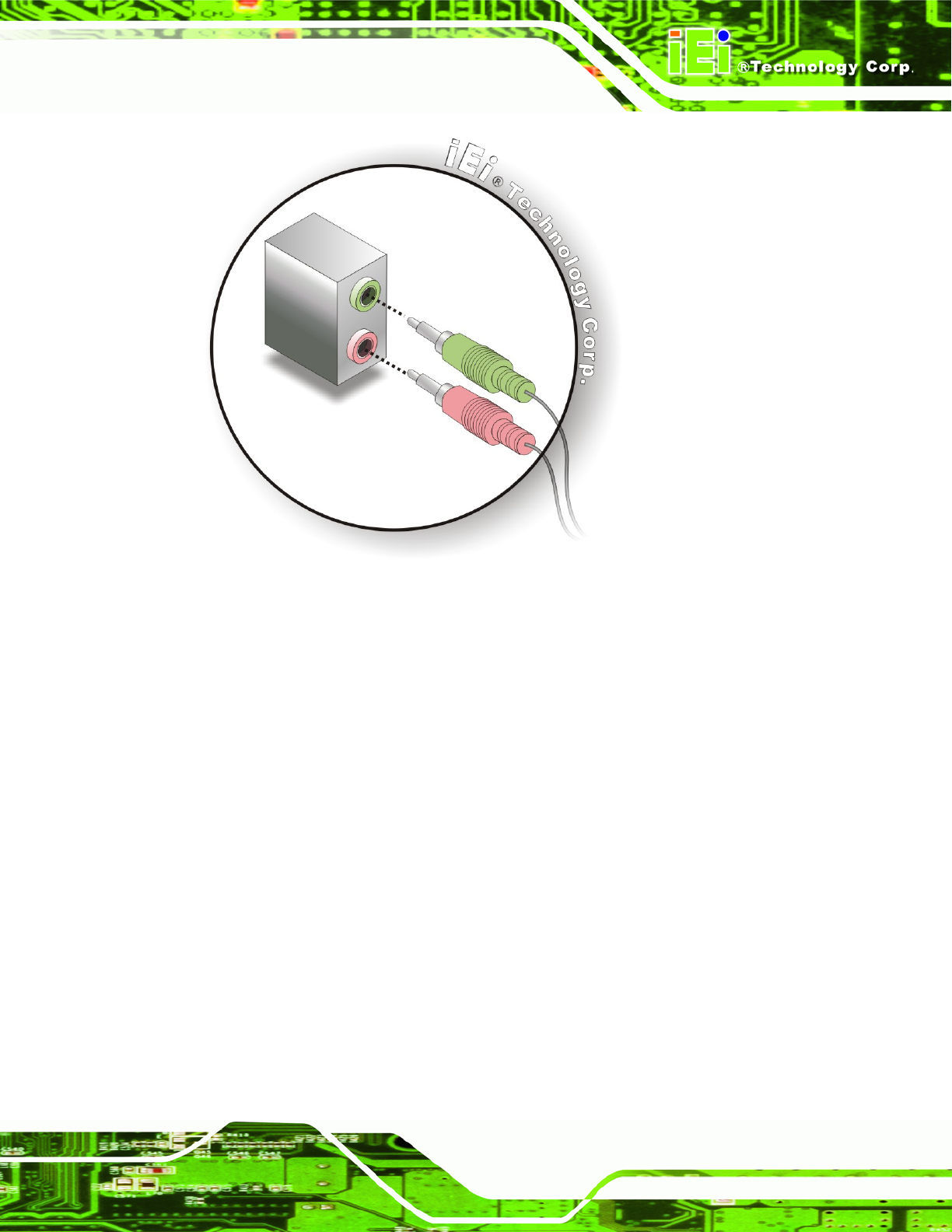

Figure 5-18: Audio Connectors
5.7.2 RJ-45 Ethernet Connection
The KINO-9453 has two RJ-45 Ethernet connectors on the external peripheral interface
panel for LAN communications. Follow the steps below to connect an RJ-45 Ethernet
connector to the KINO-9453.
Step 1: Locate the RJ-45 connector. The location of the RJ-45 connector is shown in
Chapter 3.
Step 2: Insert an RJ-45 plug. Insert the RJ-45 plug of a LAN into the RJ-45 receptacle
on the external peripheral interface. See
Figure 5-19.
