KINO-9453 Mini-ITX Motherboard
Page 72
The LVDS Voltage Selection jumper allows the LVDS screen voltage to be set. The LVDS
Voltage Selection jumper settings are shown in
Table 5-8.
LVDS Voltage Select Description
Short 1-2 +3V Default
Short 3-4 +5V
Table 5-8: LVDS Voltage Selection Jumper Settings

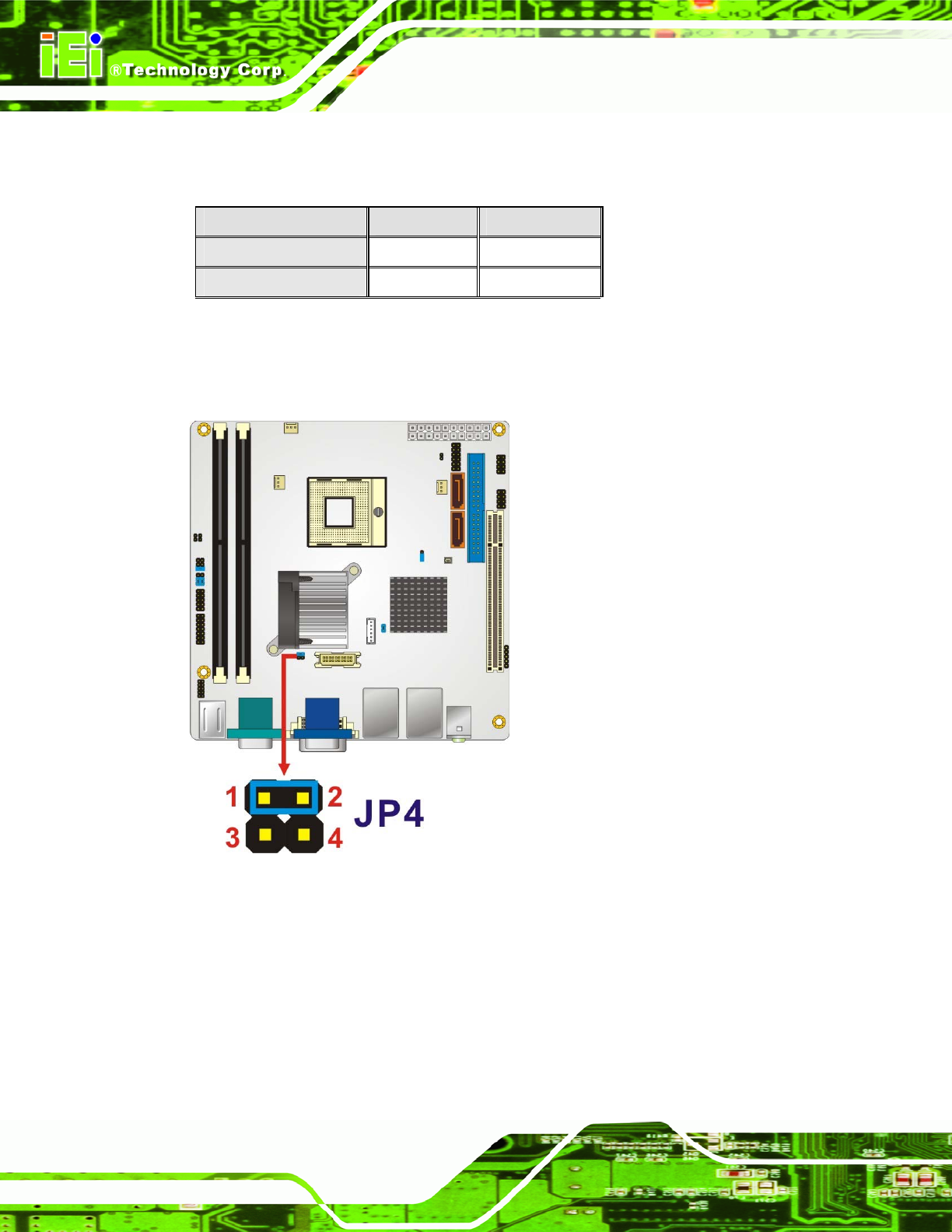

The LVDS Voltage Selection jumper location. is shown in Figure 5-13.
Figure 5-13: LVDS Voltage Selection Jumper Pinout Locations
