KINO-9453 Mini-ITX Motherboard
Page 68

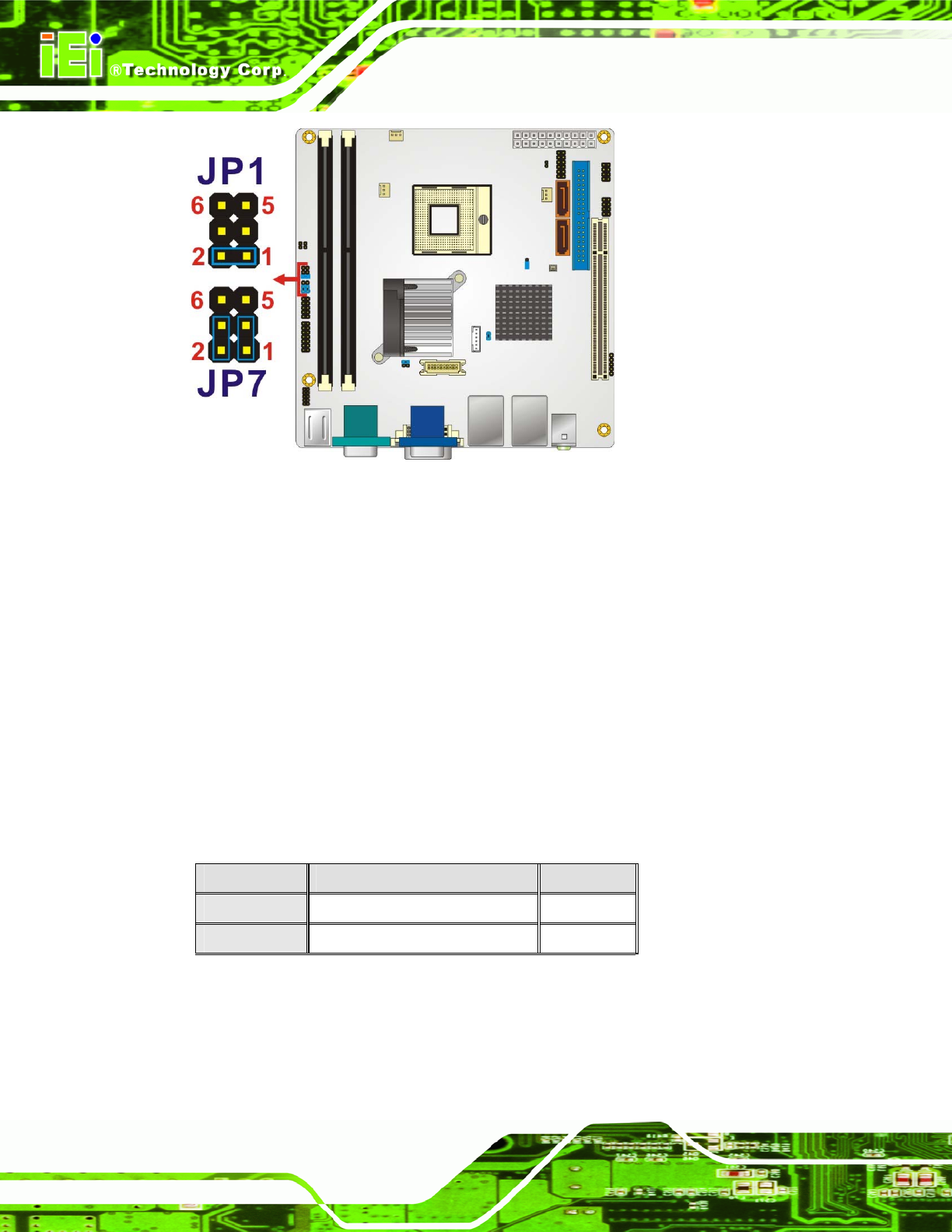

Figure 5-10: COM 3 Function Select Jumper Locations
5.4.4 RS-422 or RS-486 Termination Resister
Jumper Label: JP8 and JP9
Jumper Type:
2-pin header
Jumper Settings:
See
Table 5-5 and Table 5-6
Jumper Location:
See
Figure 5-11
The JP8 sets the RS-422 Termination Resister while JP9 sets the RS-485 Termination
Resister. The RS-422 and RS-485 Termination Resister settings are shown in
Table 5-5
and
Table 5-6.
JP8 Description
Open Normal Operation Default
Short Termination Resister Setting
Table 5-5: RS-422 Termination Resister Jumper Settings
