KINO-9453 Mini-ITX Motherboard
Page 50
4.3.5 Keyboard/Mouse Connector
CN Label: KBMS1
CN Type:
PS/2 connector
CN Location: See
Figure 4-14
CN Pinouts: See
Table 4-19 and Figure 4-19
The KINO-9453 keyboard and mouse connectors are standard PS/2 connectors.

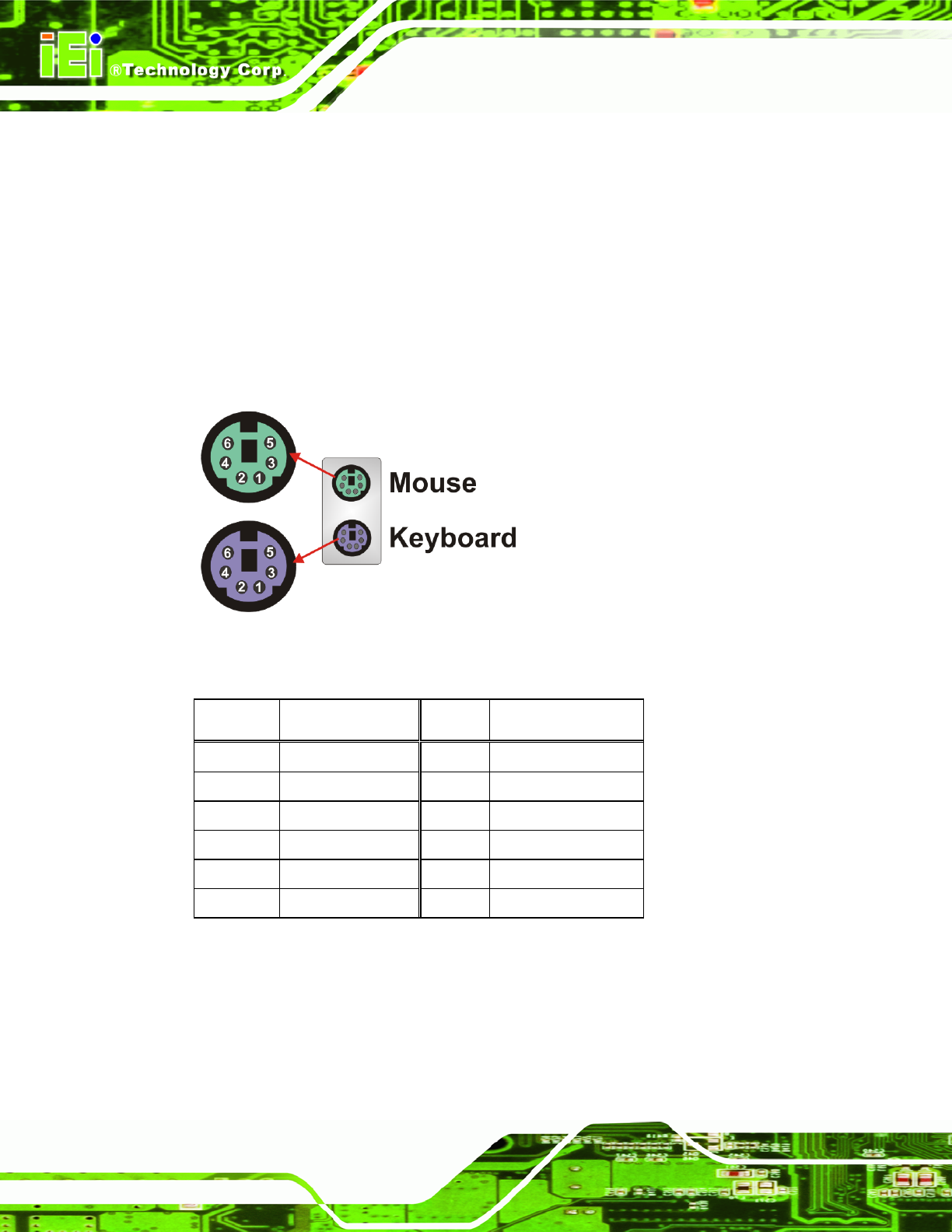

Figure 4-19: PS/2 Pinouts
PIN DESCRIPTION PIN DESCRIPTION
1 L_KDAT 7 L_MDAT
2 NC 8 NC
3 GND 9 GND
4 5V 10 5V
5 L_KCLK 11 L_MCLK
6 NC 12 NC
Table 4-19: PS/2 Connector Pinouts
