KINO-9453 Mini-ITX Motherboard
Page 47
4.3.2 CRT Connector
CN Label: VIDEO
CN Type:
15-pin female connector
CN Location: See
Figure 4-14
CN Pinouts: See
Table 4-15
The standard 15-pin VGA connector connects to a CRT or LCD display monitor.

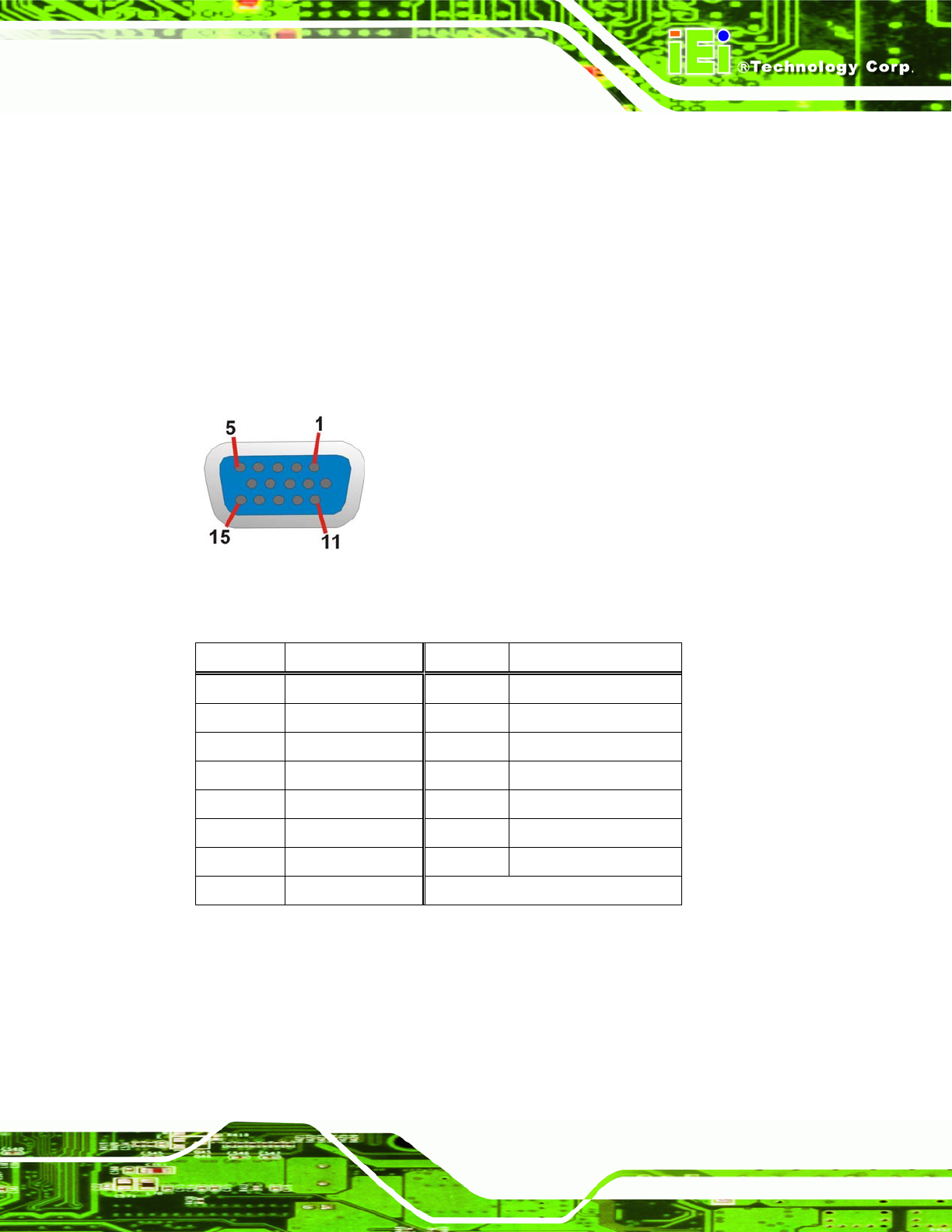

Figure 4-16: VGA Connector
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 RED 2 GREEN
3 BLUE 4 N/C
5 GND 6 GND
7 GND 8 GND
9 VCC 10 GND
11 N/C 12 DDC DAT
13 HSYNC 14 VSYNC
15 DDC CLK
Table 4-15: VGA Connector Pinouts
4.3.3 DVI Connector
CN Label: VIDEO
CN Type:
DVI interface with analog RGB signal
