KINO-9453 Mini-ITX Motherboard
Page 46
1 x DVI connector
4 x USB 2.0 connectors

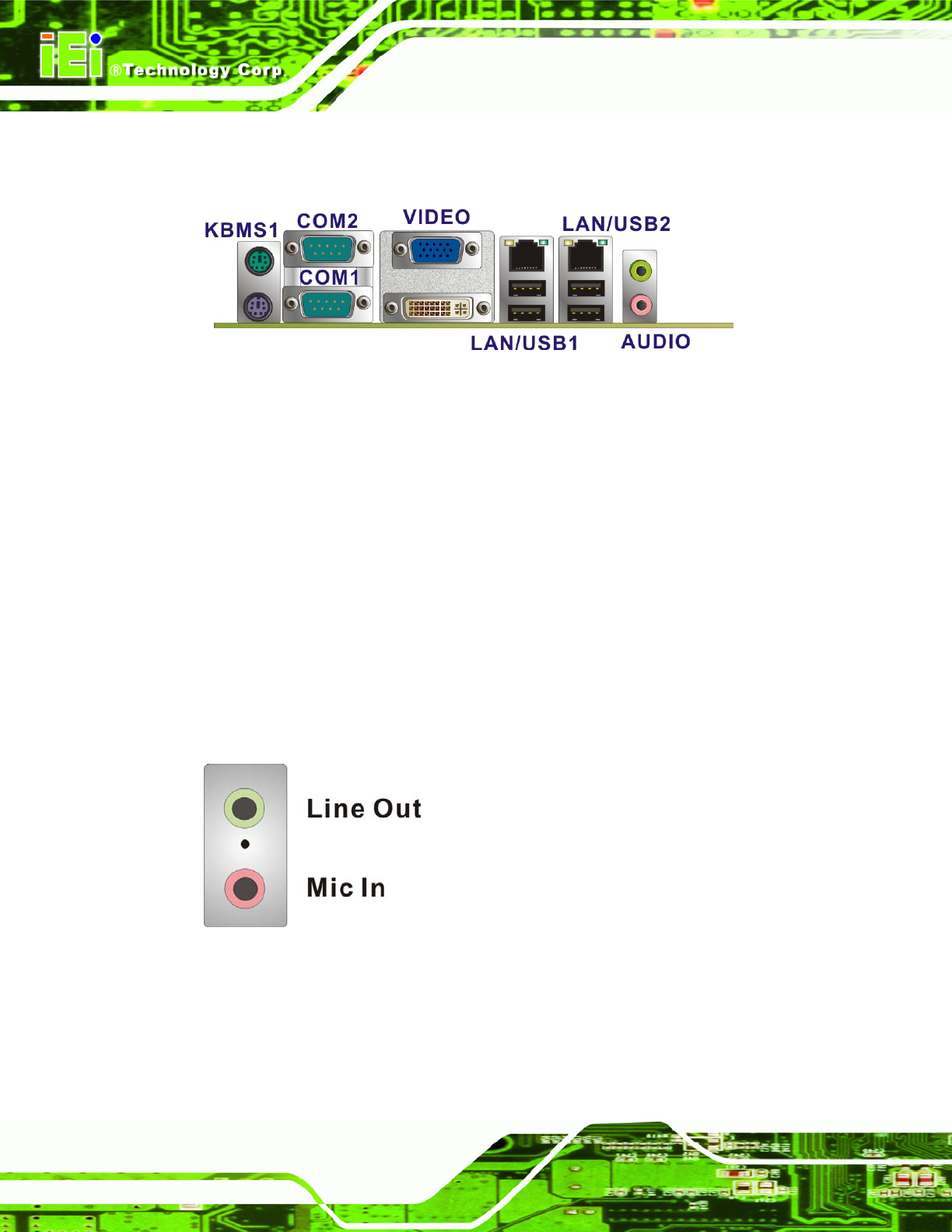

Figure 4-14: KINO-9453 External Interface Connectors
4.3.1 Audio Connectors
CN Label: AUDIO
CN Type:
Audio jack
CN Location: See
Figure 4-14
CN Pinouts: See
Figure 4-15
Line Out port (Lime): Connects a headphone or a speaker. In 4,6,8-channel
configuration, the function of this port becomes Front Speaker Out.
Microphone (Pink): Connects a microphone.
Figure 4-15: Audio Connectors
