KINO-9453 Mini-ITX Motherboard
Page 43
CN Location: See Figure 4-11
CN Pinouts: See
Table 4-12
The two SATA drive connectors are connected to four SATA drives. SATA drives transfer
data at speeds as high as 1.5 Gb/s.

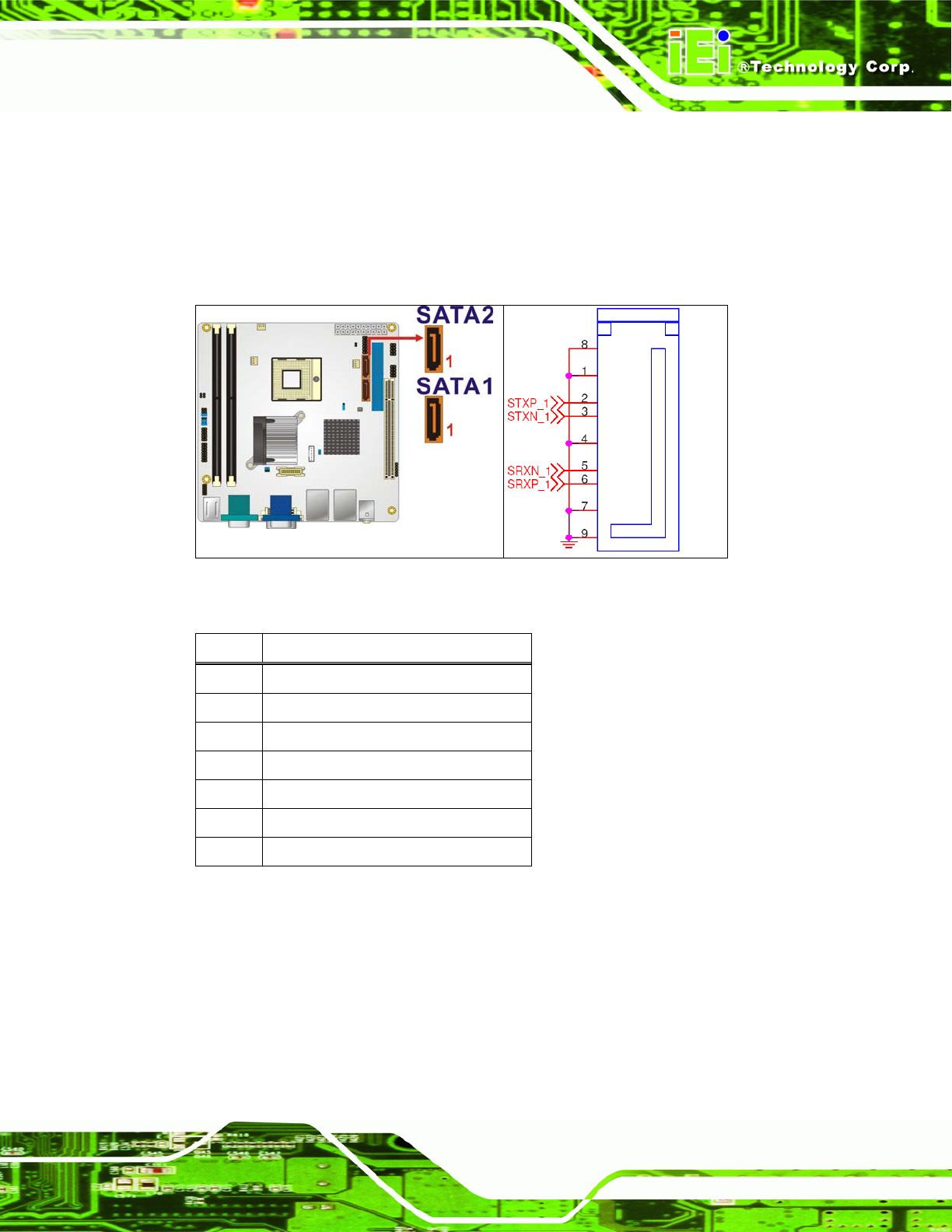

Figure 4-11: SATA Drive Connector Locations
PIN NO. DESCRIPTION
1 GND
2 TXP
3 TXN
4 GND
5 RXN
6 RXP
7 GND
Table 4-12: SATA Drive Connector Pinouts
4.2.11 SPDIF Connector
CN Label: SPDIF1
CN Type:
5-pin header (1x5)
