KINO-9453 Mini-ITX Motherboard
Page 42
4.2.9 10-Pin Serial Port Connectors
CN Label: COM4
CN Type:
10-pin header (2x5)
CN Location: See
Figure 4-10
CN Pinouts: See
Table 4-11
The serial ports connectors connect to RS-232 serial port device.

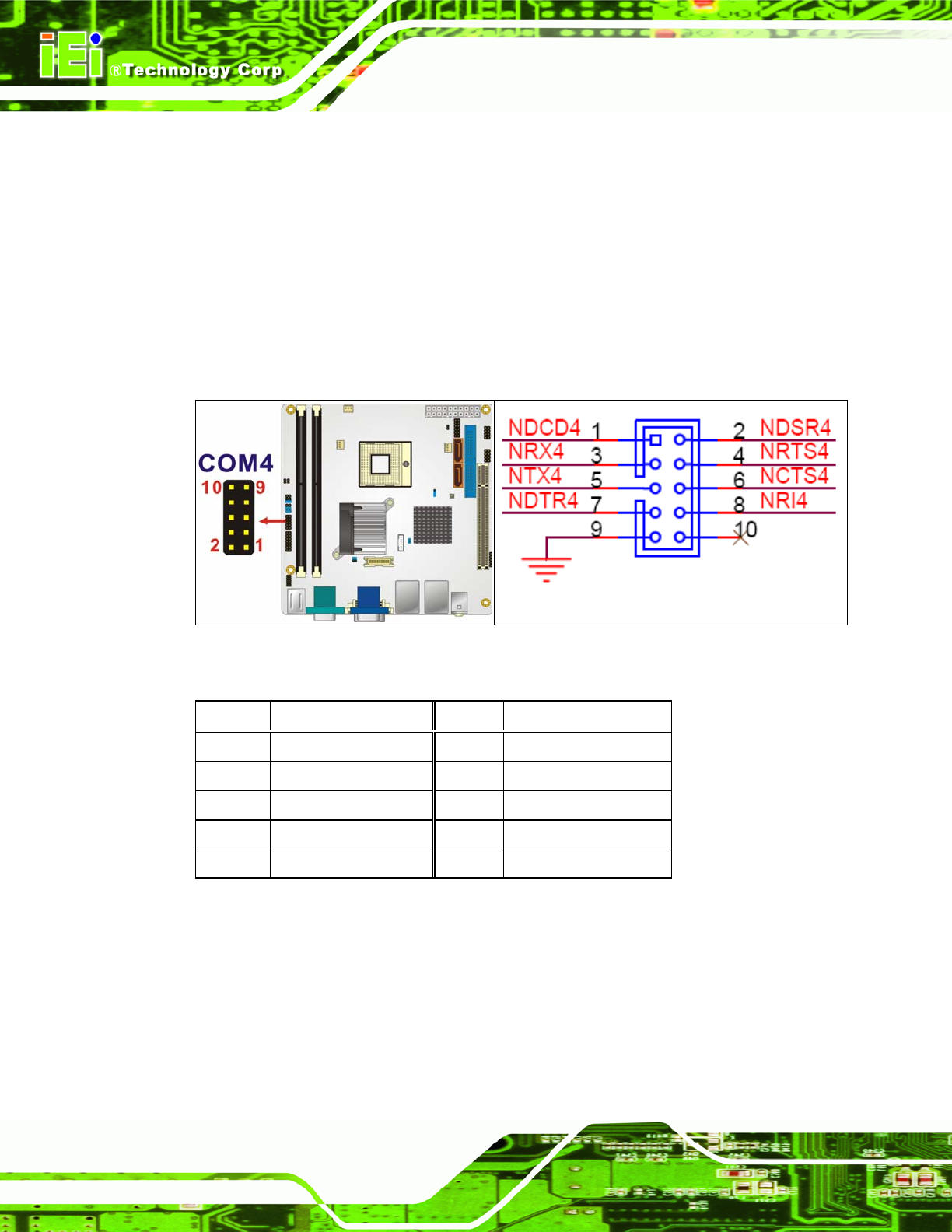

Figure 4-10: 10-Pin Serial Port Connector Locations
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 DCD 2 DSR
3 RXD 4 RTS
5 TXD 6 CTS
7 DTR 8 RI
9 GND 10 NC
Table 4-11: COM4 Pinouts
4.2.10 SATA Drive Connectors
CN Label: SATA1 and SATA2
CN Type:
7-pin SATA drive connector (1x7)
