4.2.7 Power Connector
CN Label: PWR1
CN Type:
20-pin connector
CN Location: See
Figure 4-8
CN Pinouts: See
Table 4-9
This 20-pin power connector supports the ATX power supply.

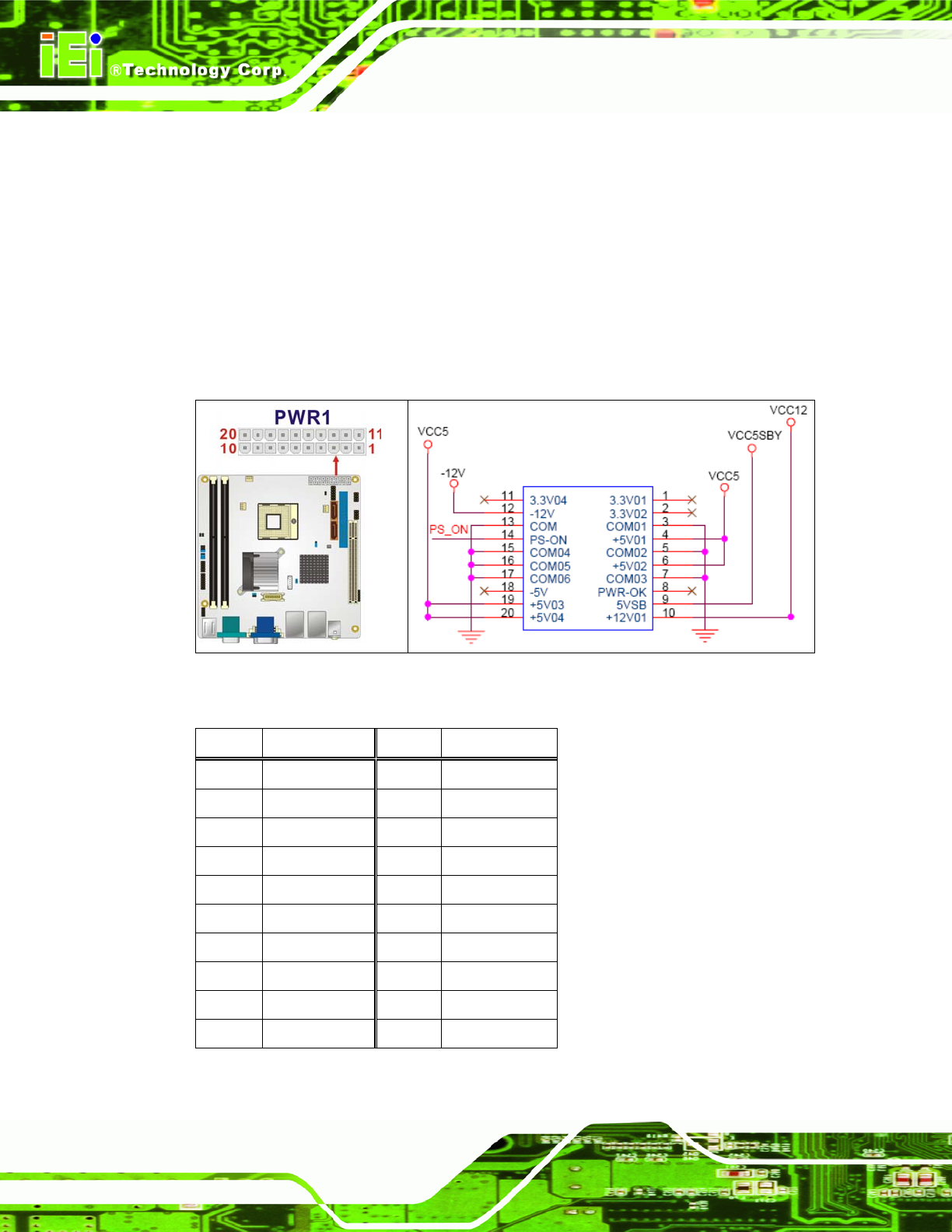

Figure 4-8: Power Connector Location
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 3.3V 11 3.3V
2 3.3V 12 -12V
3 GND 13 GND
4 +5V 14 PS_ON
5 GND 15 GND
6 +5V 16 GND
7 GND 17 GND
8 Power good 18 -5V
9 5VSB 19 +5V
10 +12V 20 +5V
Table 4-9: Power Connector Pinouts
